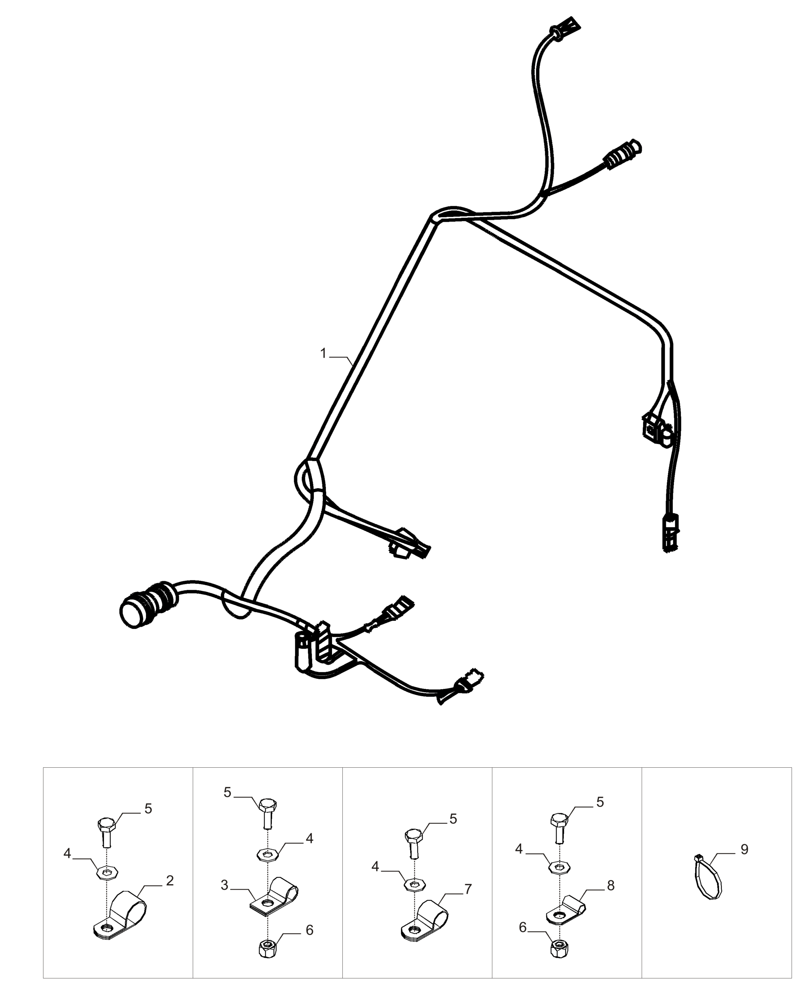

Запчасти Case IH A8800 (55.100.AF[04]) - WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

1

48041292

WIRE HARNESS

Rear LH

1шт.

2

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

6

412250

NUT,M8 x 1.25, Cl 8

2шт.

7

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

8

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

86566989

CABLE TIE,208mm L

2шт.
