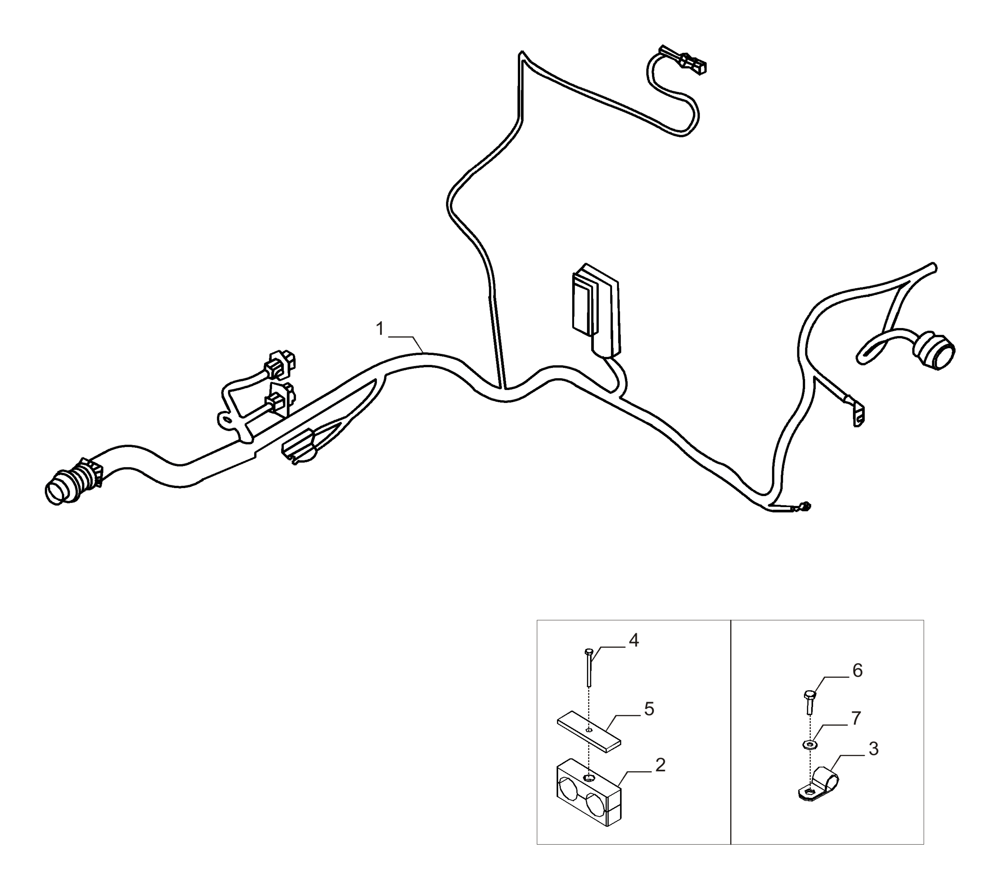

Запчасти Case IH A8800 (55.015.AB[02]) - ENGINE, WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

1

48050294

WIRE HARNESS

Engine Block T3

1шт.

2

00409585

CLAMP

2шт.

3

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

3

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

3

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

3

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

3

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

4

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

4

11030421

BOLT,Hex, M6 x 75mm, Cl 8.8

1шт.

5

409586

PLATE

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.
