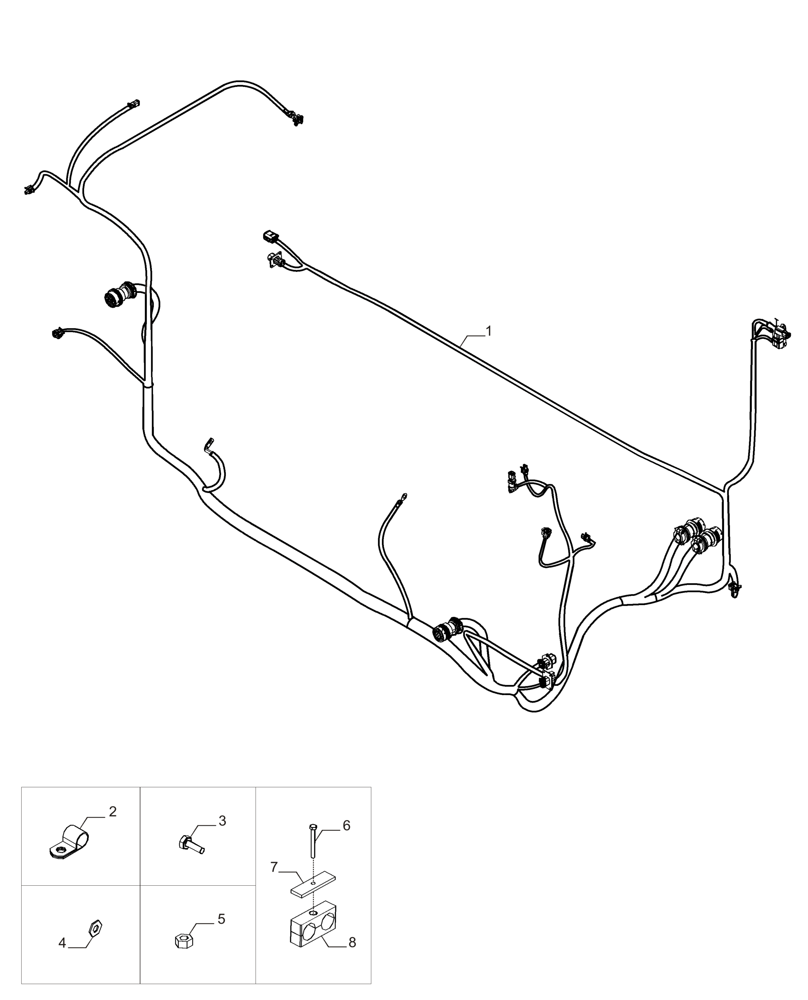

Запчасти Case IH A8800 (55.015.AB[01]) - ENGINE, WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

1

48050297

WIRE HARNESS

Engine Compartment

1шт.

2

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

2

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

2

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

2

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

2

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

2

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

9шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

3

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

6шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

4

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

12шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

5

385681

NUT,M4 x 0.7, Cl 8

6шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

5

353308

NUT,M6 x 1.0, Cl 8

2шт.

6

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

7

409586

PLATE

2шт.

8

00409585

CLAMP

2шт.
