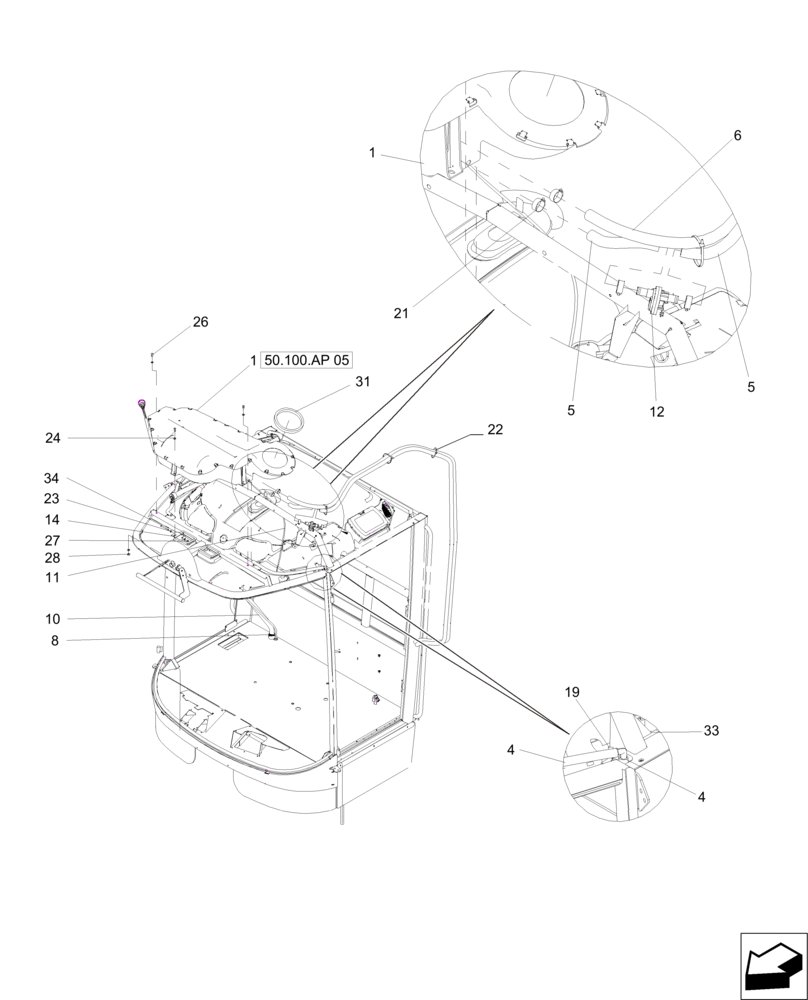

Запчасти Case IH A8800 (50.100.AP[02]) - AIR CONDITIONER (COLD/HEAT AIR) (50) - CAB CLIMATE CONTROL

1

87541269

AIR CONDITIONER

1шт.

4

84814472

TUBE,12.70 mm ID

HOSE,LARGE

5.1mшт.

5

84607280

HEATER HOSE,15.9mm ID x 23.9mm OD x 2.71M

3mшт.

6

84607279

HEATER HOSE,15.9mm ID x 150mm L, SAE 20R3

3.15mшт.

8

87720216

HYD TUBE

1шт.

10

87720218

HYD TUBE

1шт.

11

87383765

CABLE,1510mm L

1шт.

12

84607110

VALVE

1шт.

14

84989197

SUPPORT

1шт.

19

401223

PROFILE

1шт.

21

326082

CLAMP,18mm - 25mm

2шт.

22

368582

STRAP

3шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

24

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

26

84012852

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

3шт.

27

9706755

NUT,M6, Cl 8

1шт.

28

9706690

NUT,M8 x 1.25, Cl 8

1шт.

31

82036366

SEAL,21mm W x 5000mm L

1шт.

33

87728730

ELBOW

1шт.

34

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.
