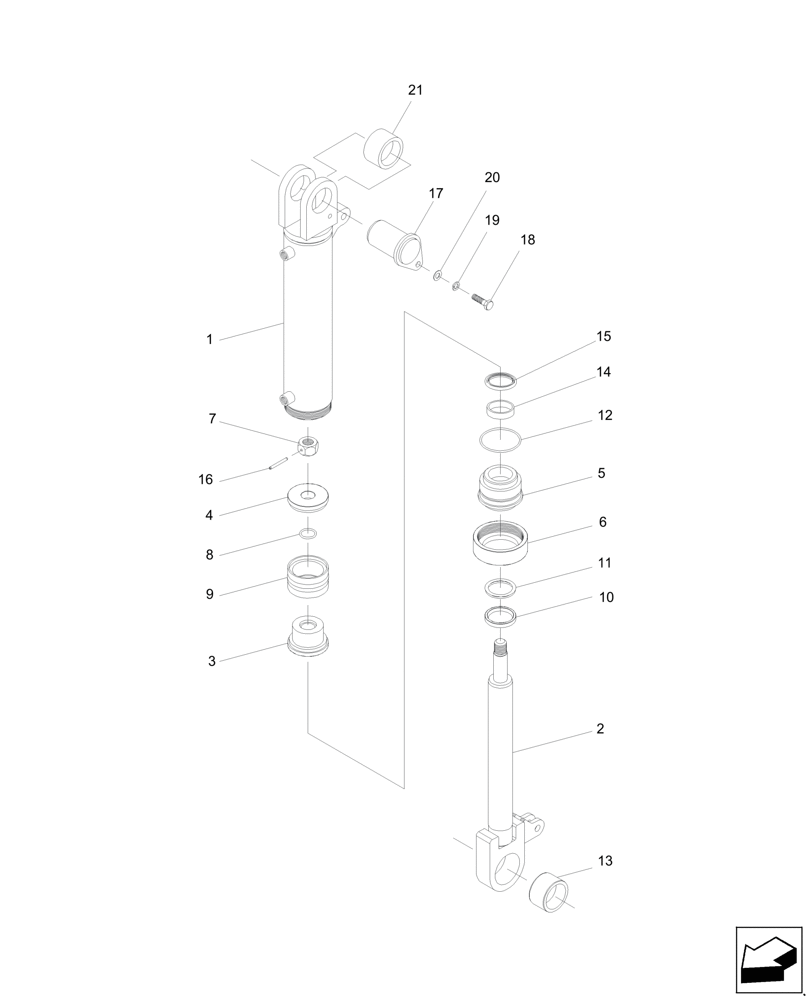

Запчасти Case IH A8800 (35.565.AC[02]) - HYDRAULIC CYLINDER (BASECUTTER LIFT 8800) (35) - HYDRAULIC SYSTEMS

1

87446563

BARREL

1шт.

2

450608A1

SHAFT,44.45mm OD x 417mm L

1шт.

3

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

1шт.

4

86787100

PISTON

1шт.

5

84212478

CYLINDER HEAD

1шт.

6

87045700

SPECIAL NUT

1шт.

7

9602205

NUT,7/8"-14, G5

1шт.

8

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

9

00100715

OIL SEAL

1шт.

10

00100722

WIPER SEAL

1шт.

11

00100711

WIPER SEAL

1шт.

12

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

13

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

1шт.

14

84207315

RING

1шт.

15

84203880

SEALING RING COLLAR

1шт.

16

00608214

PIN

1шт.

17

450670A1

PIN,50.4mm OD x 90mm L

1шт.

18

FA110020

BOLT

1шт.

19

WB100000

WASHER

1шт.

20

WA100000

WASHER

1шт.

21

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

1шт.

22

87446564

CYLINDER,Double Acting, 44mm Rod, 255mm Stroke

Assy, +150mm

1шт.

23

87446620

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 255mm Stroke

Assy, +150mm

1шт.

Items 17 to 20 not included

1шт.

24

84207305

SET OF PARTS

1шт.
