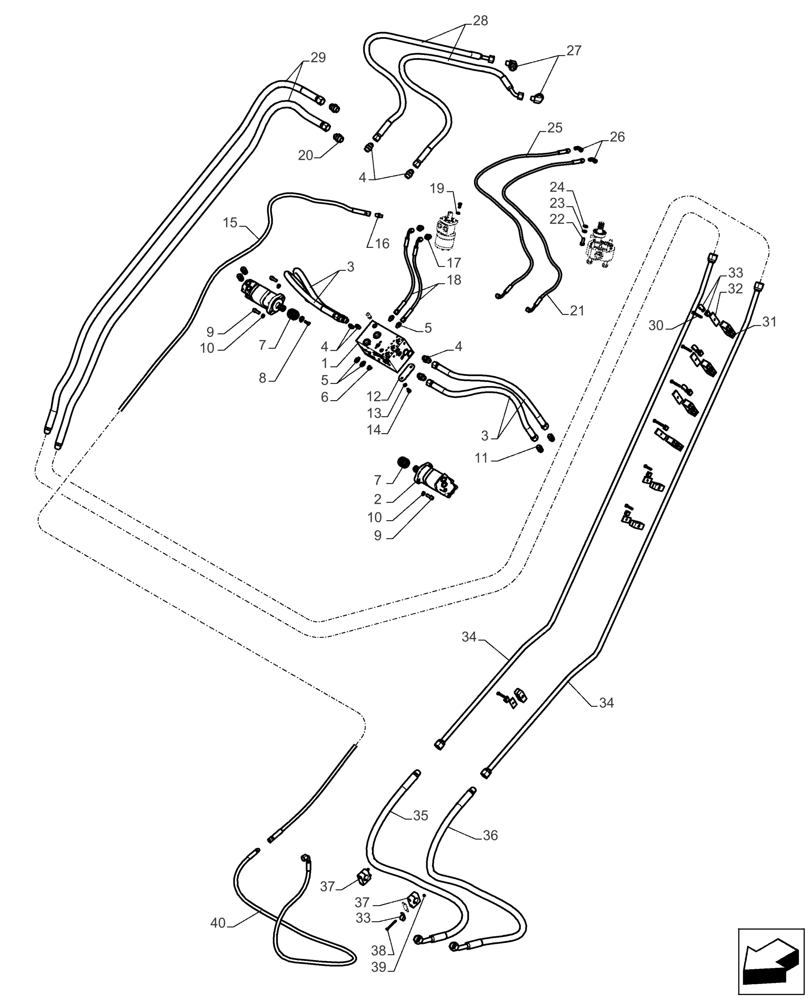

Запчасти Case IH A8800 (35.310.AF[16]) - HYDRAULIC VALVE (ELEVATOR) - MY-16 (35) - HYDRAULIC SYSTEMS

1

84541643

MANIFOLD

1шт.

2

47671154

HYDRAULIC MOTOR

2шт.

3

82714600

HOSE ASSY.

4шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

6шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

6шт.

6

76349

PLUG,9/16" - 18 ORB

1шт.

7

87223440

SPLINED COUPLING,14T Internal / 16T External

2шт.

8

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

9

461-35020

HEX SOC SCREW,1/2"-13 x 1 1/4"

4шт.

10

492-11050

LOCK WASHER,1/2"

4шт.

11

84203852

SEALING RING COLLAR

1шт.

12

87255819

PLATE

2шт.

13

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

14

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

15

47801716

HYDRAULIC HOSE

1шт.

16

84158894

HYD CONNECTOR

1шт.

17

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

18

86327400

HOSE ASSY.

2шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

20

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

2шт.

21

87234593

HOSE,6.35mm ID x 1950mm L, SAE 100R17

1шт.

22

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

24

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

25

86300927

HOSE ASSY.

1шт.

26

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

27

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

2шт.

28

87236502

HOSE ASSY.

2шт.

29

47888695

HYDRAULIC HOSE

2шт.

30

86639028

BOLT,Hex, M8 x 65mm, Cl 8.8, Full Thd

4шт.

31

47940193

CLAMP

4шт.

32

409586

PLATE

4шт.

33

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

11шт.

34

87247175

TUBE,25.40 mm OD

2шт.

35

47826120

HYDRAULIC HOSE

1шт.

36

87252188

HOSE ASSY.

1шт.

37

1725967

CONNECTING BLOCK

2шт.

38

11030421

BOLT,Hex, M6 x 75mm, Cl 8.8

4шт.

39

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

40

47801893

HYDRAULIC HOSE

1шт.
