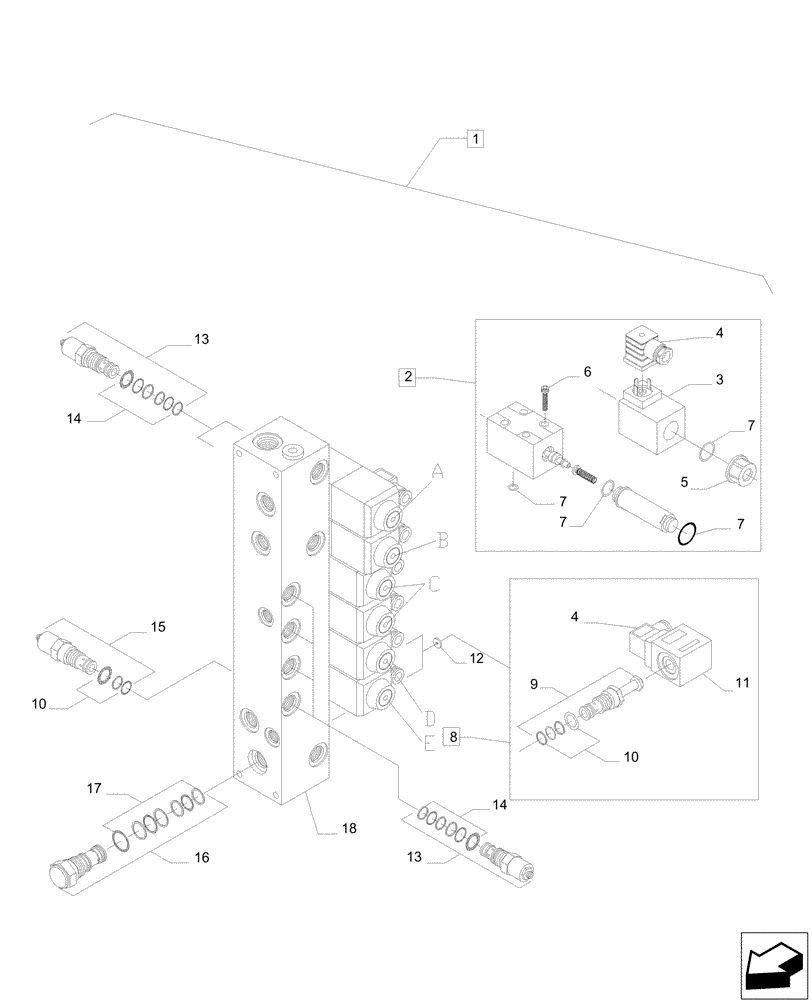

Запчасти Case IH A8800 (35.310.AF[05]) - HYDRAULIC VALVE (6 SECTION) (35) - HYDRAULIC SYSTEMS

1

87756551

BLOCK

Assy, Incl 2 - 20

1шт.

2

84162157

HYDRAULIC VALVE

Assy Cetop A, Incl 3 - 7

1шт.

2

84162156

ELECTRO-VALVE

Assy Cetop B, Incl 3 - 7

1шт.

2

84162158

HYDRAULIC VALVE

Assy Cetop C, Incl 3 - 7

2шт.

2

84162153

HYDRAULIC VALVE

Assy Cetop D, Incl 3 - 7

1шт.

2

84162887

HYDRAULIC VALVE

Assy Cetop E, Incl 3 - 7

1шт.

2

84277298

COIL

Assy A/D, Incl 3 - 7

6шт.

3

84316833

COIL

Assy B/C

6шт.

3

84277302

COIL

Assy B/C

2шт.

4

00409524

ELEC CONNECTOR

14шт.

5

00409924

NUT

10шт.

5

84277308

BUTTON

2шт.

6

00409891

BOLT

6шт.

7

00409929

SEAL KIT

6шт.

8

84162149

VALVE SECTION

Incl 4, 9 - 11

2шт.

9

00410162

VALVE PRESSURE RELIE

2шт.

10

00408151

SEAL KIT

3шт.

11

84277311

COIL

2шт.

12

00410164

ORIFICE

2шт.

With hole

1шт.

13

00410165

VALVE PRESSURE RELIE

6шт.

14

00410166

SEAL KIT

6шт.

15

00410167

VALVE PRESSURE RELIE

1шт.

16

00410168

VALVE PRESSURE RELIE

1шт.

17

00410163

SEAL KIT

1шт.

18

00410222

HYDRAULIC VALVE

1шт.

19

401482A1

SCREW,M6, W/ -0.8mm Orifice

0.8mm

1шт.
