(35.300.AN[01]) - HYDRAULIC OIL FILTERS AND STRAINERS

Запчасти Case IH A8800 (35.300.AN[01]) - HYDRAULIC OIL FILTERS AND STRAINERS (35) - HYDRAULIC SYSTEMS

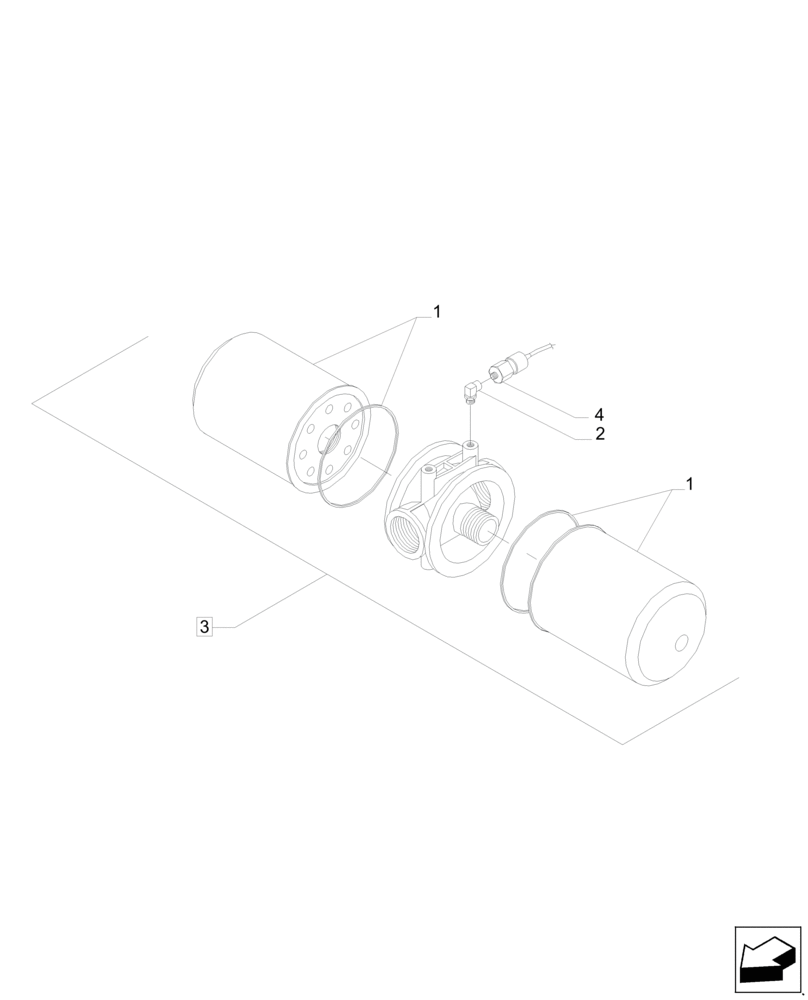

Схема запчастей Case IH A8800 - (35.300.AN[01]) - HYDRAULIC OIL FILTERS AND STRAINERS (35) - HYDRAULIC SYSTEMS
1
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84561943

HYDRAULIC OIL FILTER

4шт.

2

00409235

HYD CONNECTOR

2шт.

3

47618237

HYDRAULIC OIL FILTER

Assy, Incl 1, 2

2шт.

4

87562355

ADJUSTER

1шт.

Выбрано товаров: 4
