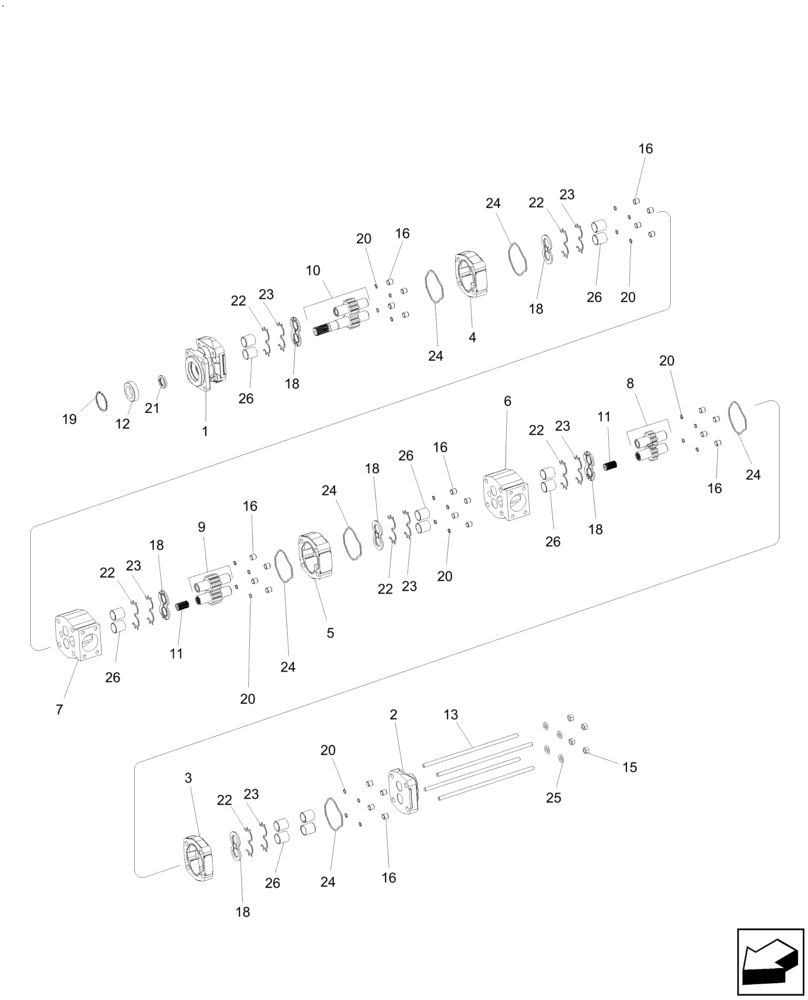

Запчасти Case IH A8800 (35.104.AA[01]) - HYDRAULIC PUMP * COMMERCIAL (35) - HYDRAULIC SYSTEMS

1

84219821

FLANGE

1шт.

2

84179017

COVER

1шт.

3

00408706

TRANSMISSION HOUSING

1шт.

4

00408690

TRANSMISSION HOUSING

1шт.

5

00407697

TRANSMISSION HOUSING

1шт.

6

0000410054

BODY

1шт.

7

84179019

CONVEYOR

1шт.

8

00408702

GEAR

set of gear - 84219845 smooth-nss, 84219843 striate- nss

1шт.

9

84179018

GEAR

set of gear- 84219847 smooth - nss, 84219841 striate-nss

1шт.

10

00410050

GEAR

set of gear- 84219840 bigger-nss, 84219848 smaller-nss

1шт.

11

00407693

SHAFT

2шт.

12

00408709

BALL BEARING

1шт.

13

00403567

ASSEMBLY

4шт.

15

00400532

NUT

4шт.

16

0000948407

PIN

24шт.

18

00409394

THRUST PLATE

6шт.

19

00400629

RING

1шт.

20

84219832

SEALING RING

24шт.

21

00400631

SEAL

1шт.

22

00409792

SEAL

6шт.

23

00409793

SEAL

6шт.

24

00407038

SEAL

6шт.

25

00400531

WASHER

4шт.

26

00407034

BUSHING

12шт.

27

00408493

SEAL KIT

1шт.

28

84154895

HYDRAULIC PUMP

Assy

1шт.
