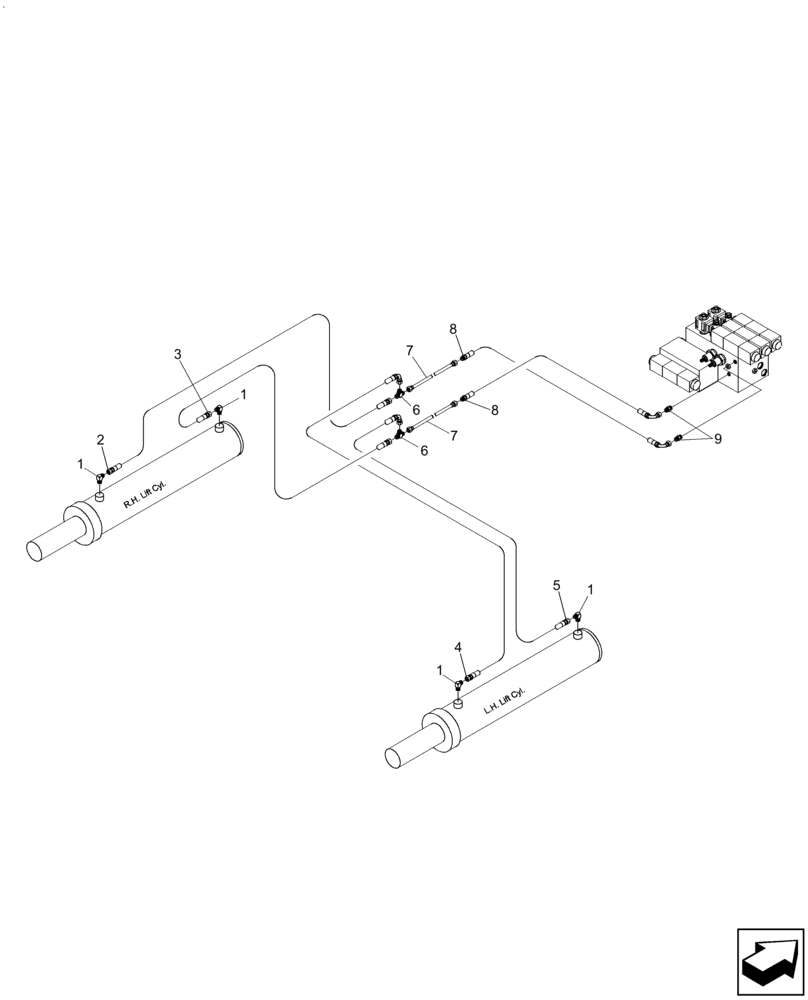

Запчасти Case IH A8800 (35.000.AA[22]) - HYDRAULIC CIRCUIT (ELEVATOR LIFT) (35) - HYDRAULIC SYSTEMS

1

00402475

HYD CONNECTOR

4шт.

2

87222449

HOSE ASSY.

1шт.

Std/Extended

1шт.

2

82721300

HOSE,6.35mm ID x 1920mm L, SAE 100R17

1шт.

Extended Elevator +250

1шт.

3

87237582

HOSE ASSY.

1шт.

Std/Extended

1шт.

3

87235847

HOSE,6.35mm ID x 920mm L, SAE 100R17

1шт.

Extended Elevator +250

1шт.

4

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

1шт.

Std/Extended

1шт.

4

86837700

HOSE,6.35mm ID x 3020mm L, SAE 100R17

1шт.

Extended Elevator +250

1шт.

5

87237583

HOSE ASSY.

1шт.

Std/Extended

1шт.

5

82731200

HOSE,6.35mm ID x 2550mm L, SAE 100R17

1шт.

Extended Elevator +250

1шт.

6

00400207

TEE

2шт.

7

87247176

TUBE,9.50 mm ID x 6.30 mm OD x 850 mm L

2шт.

8

419700A1

HOSE,6.35mm ID x 1650mm L, SAE 100R17

2шт.

9

00400223

HYD CONNECTOR

2шт.
