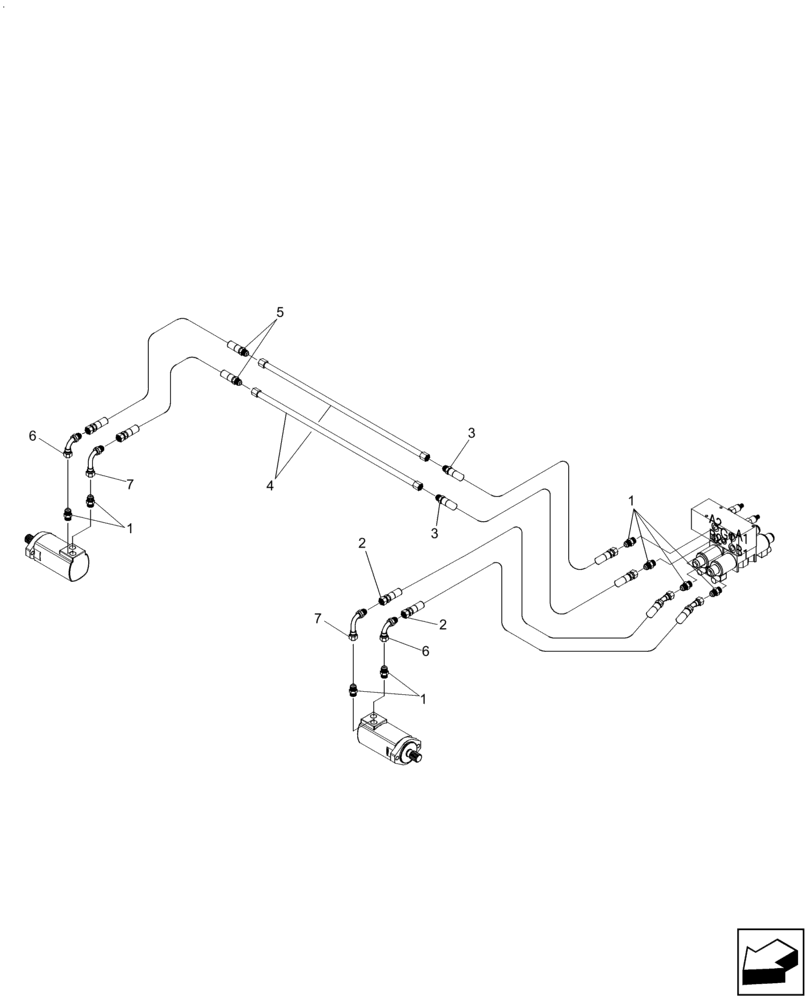

Запчасти Case IH A8800 (35.000.AA[14]) - HYDRAULIC CIRCUIT SIDETRIM KNIVES (35) - HYDRAULIC SYSTEMS

1

00400228

HYD CONNECTOR

8шт.

2

87217618

HOSE,12.7mm ID x 2330mm L, SAE 100R17

45°

2шт.

2

86312387

HOSE ASSY.

STD

2шт.

3

87423021

HOSE,12.7mm ID x 410mm L, SAE 100R17

2шт.

4

87423726

TUBE,16 mm DIA x 1150 mm L

2шт.

5

87423027

HOSE,12.7mm ID x 2340mm L, SAE 100R17

2шт.

5

87431158

HOSE, BULK

HOSE, METERS 45°

2шт.

6

00407516

HYD CONNECTOR

2шт.

7

86333900

90 ELBOW

2шт.
