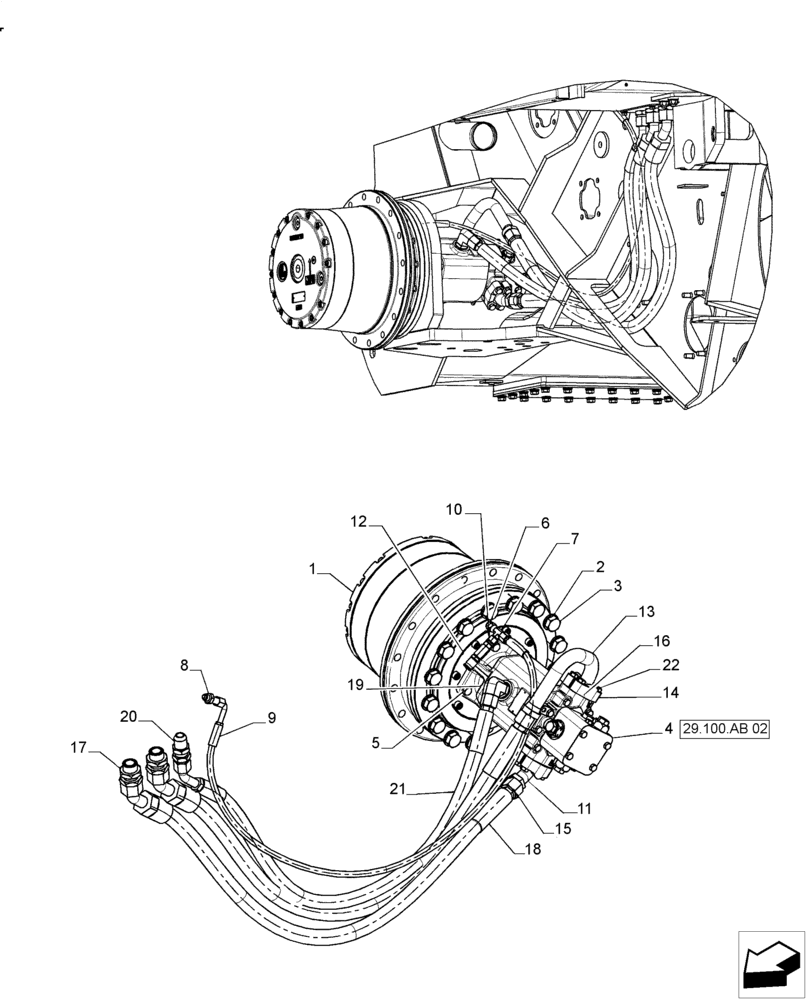

Запчасти Case IH A8800 (33.202.AX[02]) - HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

84197807

HUB

2шт.

2

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

30шт.

3

11125030

BOLT,Hex, M20 x 65, 10.9, Full Thd

30шт.

4

84360045

HYDRAULIC MOTOR

2шт.

5

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

6

00404763

HYD CONNECTOR

2шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

8

00400070

HYD CONNECTOR

2шт.

9

86312263

HOSE ASSY.

2шт.

10

948798

2шт.

11

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

12

00405498

SCREW ON COUPLING

2шт.

13

84477980

HYD CONNECTOR

2шт.

14

991420

HALF-FLANGE

8шт.

15

84475000

SAE FLANGE

2шт.

16

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

17

00410307

HYD CONNECTOR

4шт.

18

84477758

HOSE,25.4mm ID x 1280mm L, SAE 100R15

4шт.

19

400096

ELBOW

2шт.

20

400068

ADAPTER

2шт.

21

87235353

HOSE ASSY.

2шт.

22

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

16шт.
