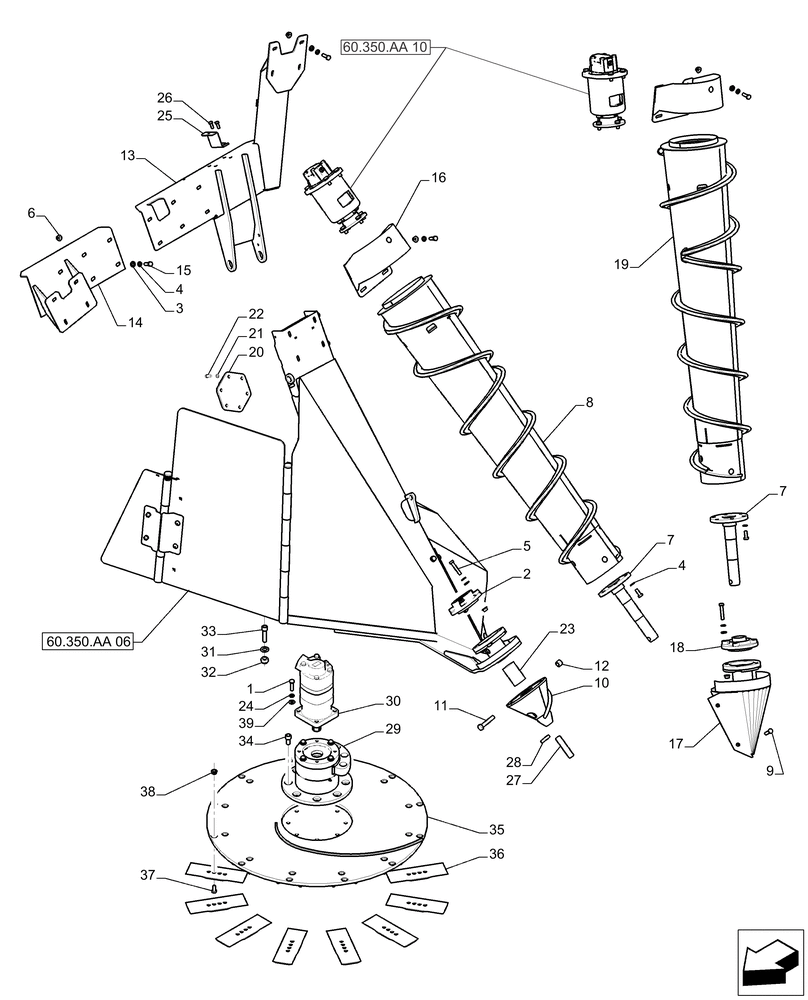

Запчасти Case IH A8000 (60.350.AA[04]) - CROP DIVIDER, LH (60) - PRODUCT FEEDING

1

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

2

47478201

PILLOW BLOCK

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

24шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

38шт.

5

440585

BOLT,Hex, M12 x 65, 8.8, Full Thd

8шт.

6

825-51412

FLANGE NUT,M12, Flg Ser

24шт.

7

84411499

SHAFT

2шт.

8

87417881

AUGER

RH

1шт.

9

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

18шт.

10

84575129

CONE

RH

1шт.

11

87015726

BOLT,Hex, M16 x 85mm, Cl 10.9

1шт.

12

86012007

LOCK NUT,M16 x 2, Cl 10

1шт.

13

47460903

SUPPORT

LH

1шт.

14

47415756

SUPPORT

1шт.

15

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

14шт.

16

87417897

MOUNTING PARTS

2шт.

17

87435257

MOUNTING PARTS

Lower LH

1шт.

18

87422529

BEARING

1шт.

19

87417882

AUGER

LH

1шт.

20

87417955

MOUNTING PARTS

1шт.

21

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

22

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

23

47484332

SPACER

1шт.

24

892-11012

LOCK WASHER,M12

4шт.

25

87429231

MOUNTING PARTS

1шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

27

87620588

ROD-TIP

1шт.

28

87438699

PIN,12.7mm OD x 50mm L

1шт.

29

47417680

CUTTER

1шт.

30

47432159

HYDRAULIC MOTOR,491.4 CC

1шт.

31

895-11020

WASHER,M20 x 37 x 3

5шт.

32

NC120000

NUT

5шт.

33

87301555

HEX SOC SCREW,M20 x 80mm, Cl 12.9

5шт.

34

863-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

8шт.

35

47417682

DISC

1шт.

36

86902900

BLADE,267mm L x 90mm W x 6mm Thk

12шт.

37

9427615

BOLT,Hex, 1/2” - 13 x 1”, Full Thd, Gr 8

24шт.

38

425-288

FLANGE NUT,Flg, 1/2"-13, G5

24шт.

39

495-11053

WASHER,1/2", SAE

4шт.
