Запчасти Case IH A8000 (55.511.AI[05]) - WIRE HARNESS, ELEVATOR,1500 - MY 2017 (55) - ELECTRICAL SYSTEMS

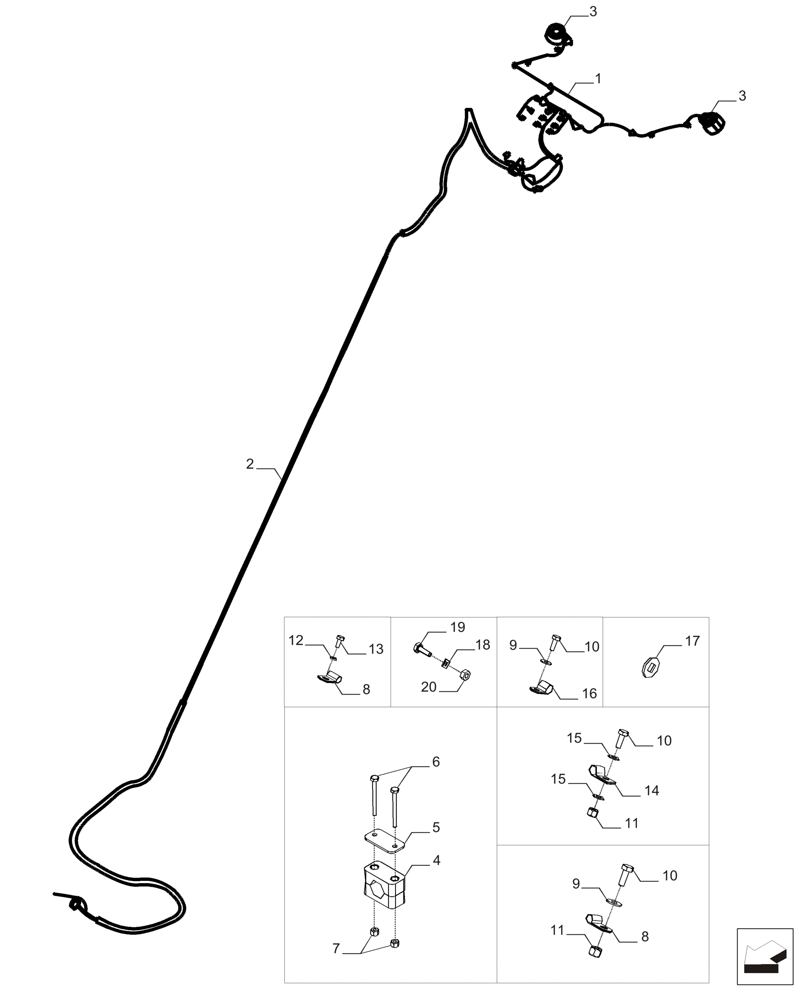

Схема запчастей Case IH A8000 - (55.511.AI[05]) - WIRE HARNESS, ELEVATOR,1500 - MY 2017 (55) - ELECTRICAL SYSTEMS
14
10
13
20
1
8
6
3
9
11
7
11
5
8
10
18
17
15
2
19
4
3
9
12
15
16
10

Артикул

Название

Примечание

Количество

1

47883330

WIRE HARNESS

Elevator Block

1шт.

2

48041302

WIRE HARNESS

1шт.

3

84807134

WORK LAMP,Halogen, 12V, 50W, Clear

2шт.

4

00408314

CLAMP

8шт.

5

00408316

COVER PLATE

8шт.

6

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

6шт.

6

300508

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

10шт.

7

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

8

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

9шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

11шт.

11

412250

NUT,M8 x 1.25, Cl 8

5шт.

11

412141

NUT,M10 x 1.5, Cl 8

4шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

14

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

16

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

8шт.

19

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

8шт.

20

100012

NUT,M4 x 0.7, Cl 8

8шт.

Выбрано товаров: 22
