Запчасти Case IH A8000 (55.100.AF[06]) - WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

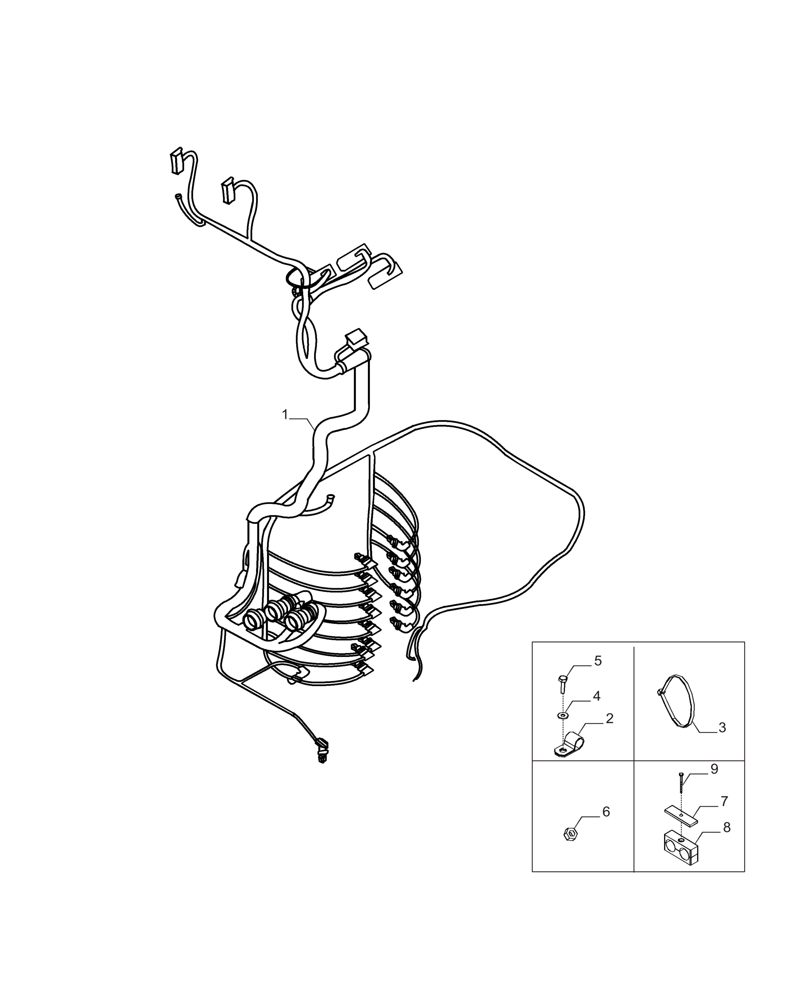

Схема запчастей Case IH A8000 - (55.100.AF[06]) - WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS
1
7
5
8
9
4
6
2
3

Артикул

Название

Примечание

Количество

1

48050289

WIRE HARNESS

6 Bank

1шт.

2

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

2

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

2

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

2

47407775

CLAMP,14.3mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

2

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

2

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

2

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

2

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

3

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

15шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

409580

CLAMP

2шт.

8

405228

PLATE

2шт.

9

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

Выбрано товаров: 19
