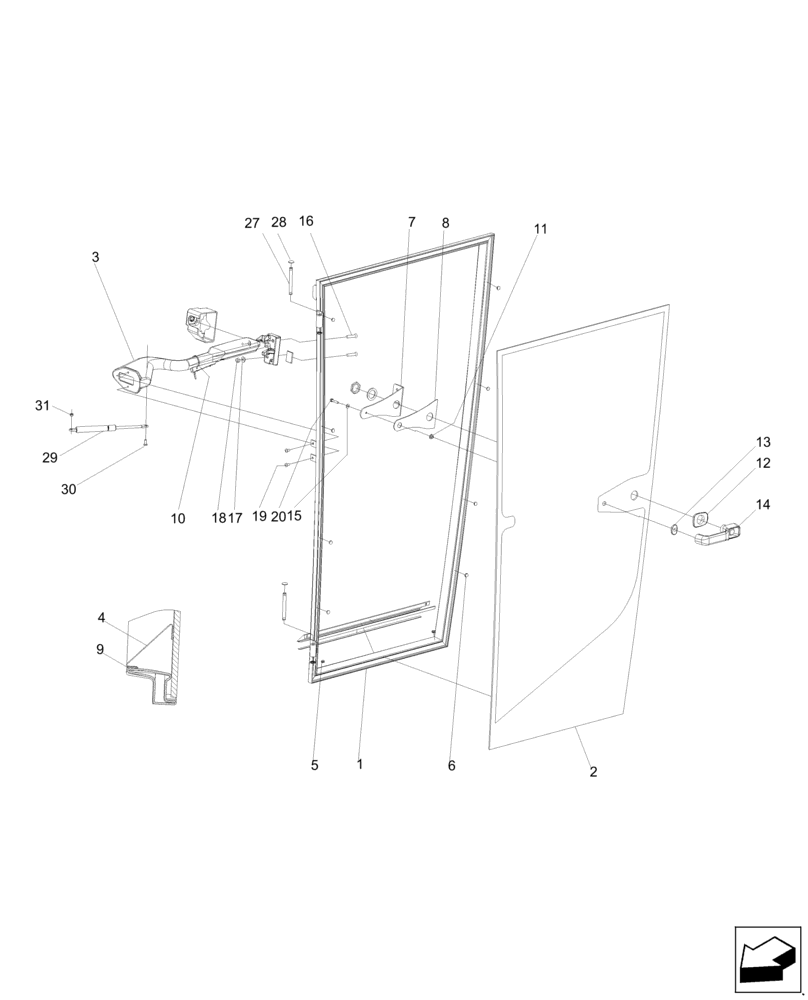

Запчасти Case IH A8000 (90.154.AA[01]) - CAB LH DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87674343

DOOR SILL MOULDING

Assy, Cab LH

1шт.

2

84819792

GLASS

Assy, Cab

1шт.

3

84989910

HANDLE

1шт.

4

84807851

PLATE

1шт.

5

9818501

PLUG,Sq, Plastic

2шт.

6

9992358

ELASTIC STOP

8шт.

7

84819764

PLATE

1шт.

8

84819765

RUBBER SEAL

1шт.

10

747159

CLAMP,16mm, Insul

1шт.

11

264036

BUSHING,6.76mm ID x 9.14mm OD x 7.15mm L

1шт.

12

9513968

GASKET

1шт.

13

9513969

GASKET

1шт.

14

9513970

HANDLE

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

300352

SCREW,Phillips Drive, Flat HD, M8 x 1.25 x 40mm, Cl 4.8

2шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

18

9706690

NUT,M8 x 1.25, Cl 8

2шт.

19

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

2шт.

20

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

27

84607358

PIN,10mm OD x 96mm L

2шт.

28

431021

SPECIAL WASHER

4шт.

29

9594808

GAS STRUT,257mm Extended, 172mm Compressed

1шт.

30

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

31

353308

NUT,M6 x 1.0, Cl 8

1шт.
