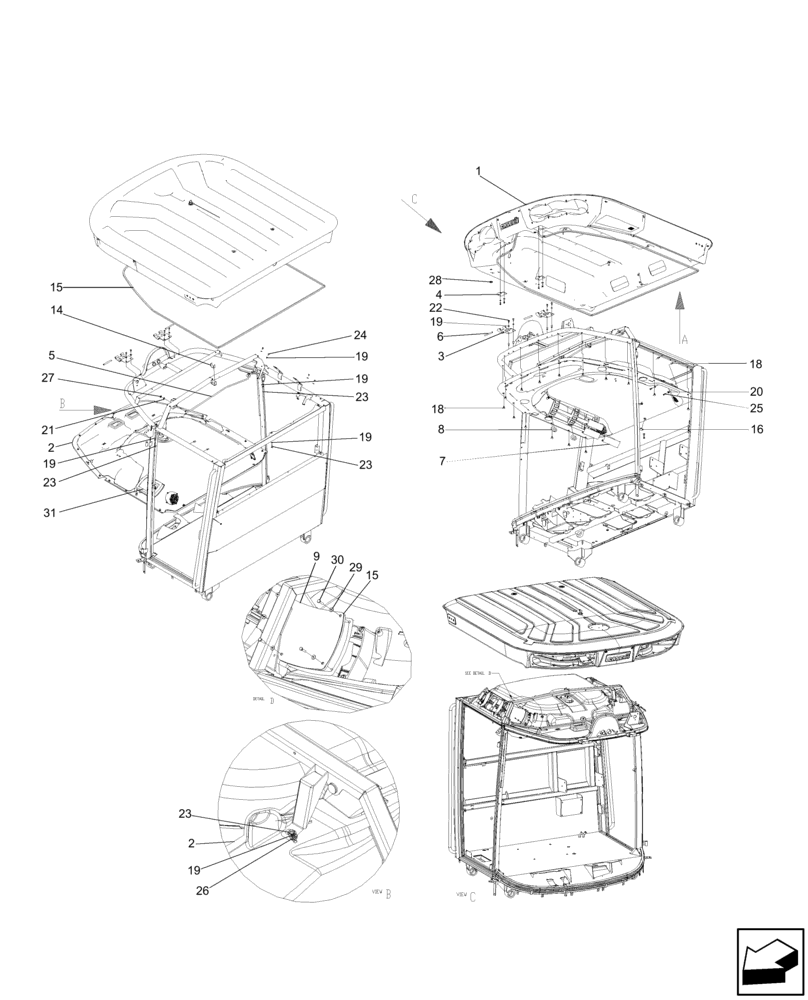

Запчасти Case IH A8000 (90.150.BG[01]) - CABIN ROOF AND LIGHTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87677440

ROOF

1шт.

2

87674334

SOFT TRIM

1шт.

3

87746998

PLATE

2шт.

4

87746999

PLATE

2шт.

5

87742760

SUPPORTING ARM

1шт.

6

87319088

PIN,10mm OD x 100mm L

2шт.

7

1868985

COVER PLATE

3шт.

8

84067961

CEILING LAMP

2шт.

9

87688397

PLATE

1шт.

14

400987

SEAL

1шт.

15

82036366

SEAL,21mm W x 5000mm L

5.5шт.

16

84989341

PLUG

1шт.

17

84000834

PLUG

16шт.

18

9833239

THREADED INSERT

6шт.

18

84211074

GAS STRUT,700mm Extended, 441mm Compressed

2шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

17шт.

20

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

21

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

23

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

24

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

25

84073086

LOCK BOLT,Pan HD, M6 x 20mm

2шт.

26

9706755

NUT,M6, Cl 8

1шт.

27

431021

SPECIAL WASHER

1шт.

28

307016

GROMMET

1шт.

29

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

5шт.

30

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

5шт.

31

9504994

RUBBER SEAL

1шт.
