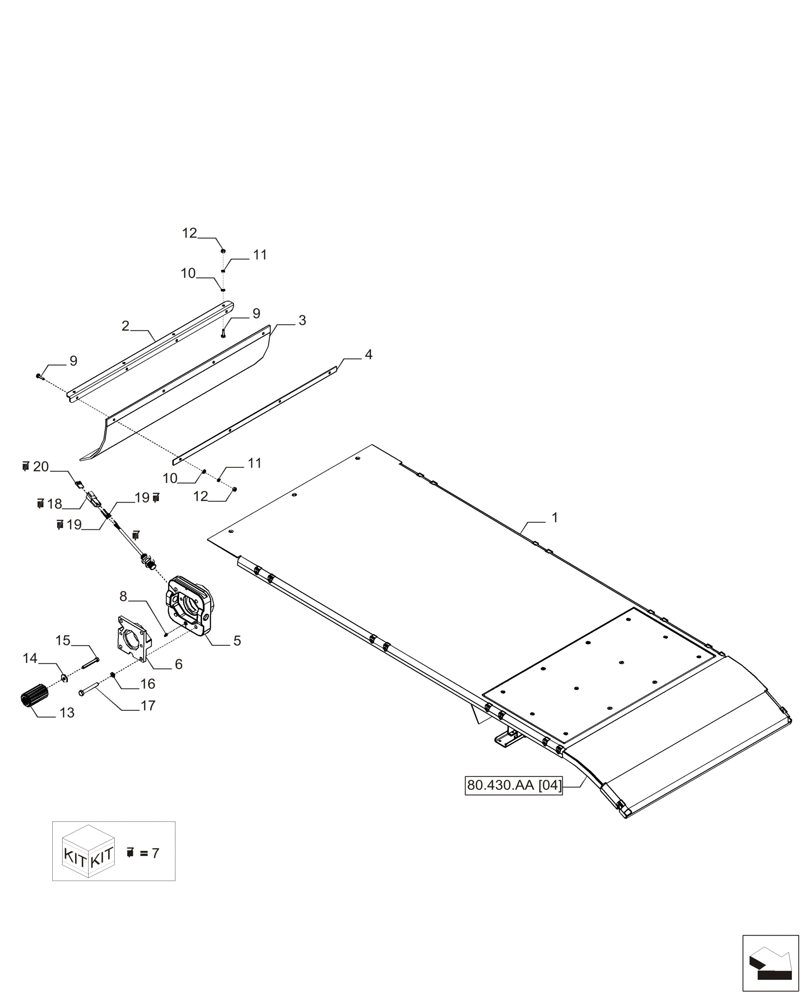

Запчасти Case IH A8000 (80.430.AA[01]) - CONTROLLER, PRODUCT, 1500 MM (80) - CROP STORAGE/UNLOADING

1

47762267

FLOOR

1шт.

2

443275A1

STEEL PLATE

1шт.

3

84336566

CAP COVER

1шт.

4

87461856

STRIP

1шт.

5

47933354

HOUSING

1шт.

6

47514575

HOUSING

1шт.

7

84058860

SENSOR

1шт.

8

88775

LUBE NIPPLE,1/4"-28

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

11

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

8шт.

12

9706690

NUT,M8 x 1.25, Cl 8

8шт.

13

47658988

COUPLING

1шт.

14

87223441

WASHER,10.5mm ID x 32mm OD x 3mm Thk

1шт.

15

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

16

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

17

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

18

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

19

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

2шт.

20

86500166

ELEC CONNECTOR

1шт.
