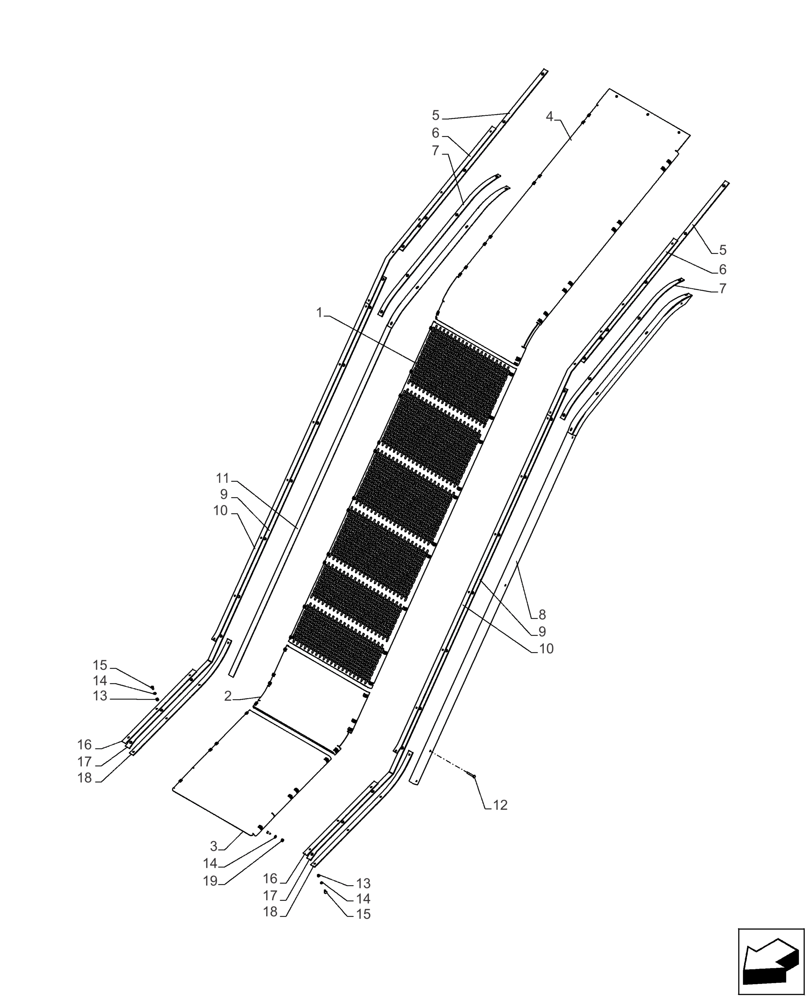

Запчасти Case IH A8000 (80.420.AC[08]) - ELEVATOR - MY16 (80) - CROP STORAGE/UNLOADING

1

47879496

FLOOR

1шт.

2

47879495

FLOOR

1шт.

3

47879493

FLOOR

1шт.

4

47879501

FLOOR

1шт.

5

47379169

STRIP

2шт.

6

87249512

WEAR STRIP

2шт.

7

87249517

WEAR STRIP

1шт.

8

87249513

WEAR STRIP

1шт.

9

87242851

WEAR STRIP

2шт.

10

87243874

WEAR STRIP

2шт.

11

87249515

WEAR STRIP

1шт.

12

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

8шт.

13

412141

NUT,M10 x 1.5, Cl 8

90шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

90шт.

15

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

80шт.

16

87243873

WEAR STRIP,40mm W x 803mm L

2шт.

17

87235158

WEAR STRIP

2шт.

18

87237313

WEAR STRIP

2шт.

19

825-51410

FLANGE NUT,M10, Flg Ser

46шт.
