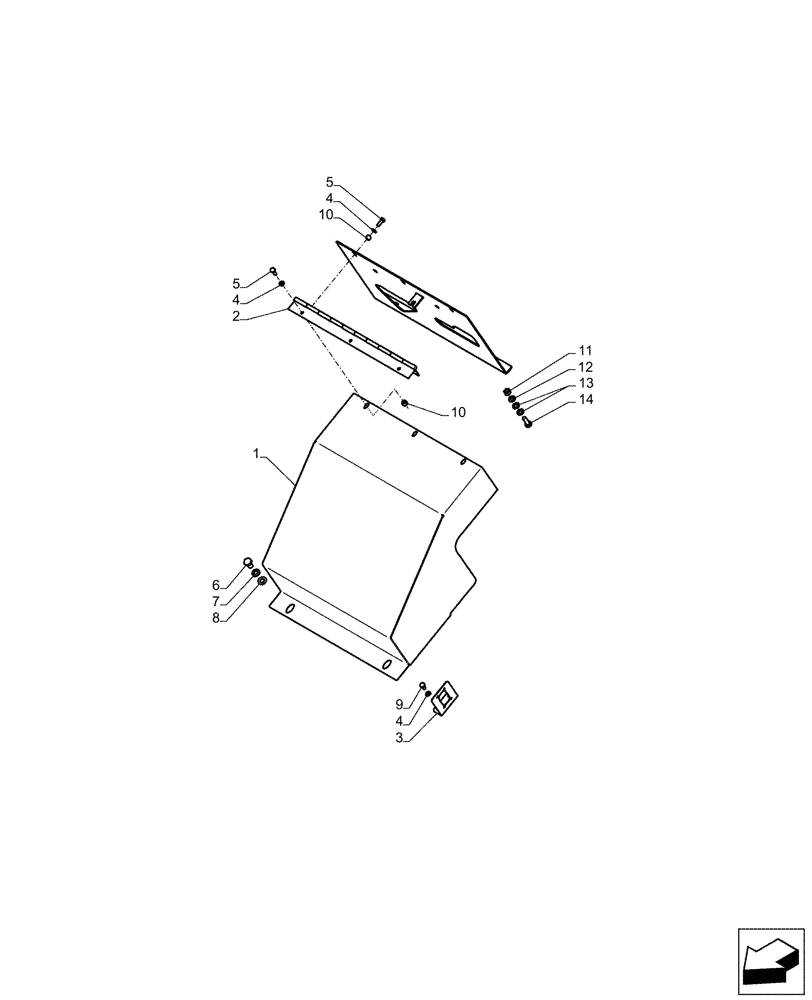

Запчасти Case IH A8000 (80.420.AC[07]) - ELEVATOR - MY16 (80) - CROP STORAGE/UNLOADING

1

47947259

COVER

1шт.

2

87246787

HINGE

1шт.

3

47906207

PLATE

1шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

6

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

16шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

64шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

10

12574211

NUT,M6 x 1, Cl 8

6шт.

11

9706690

NUT,M8 x 1.25, Cl 8

3шт.

12

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

16шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

16шт.
