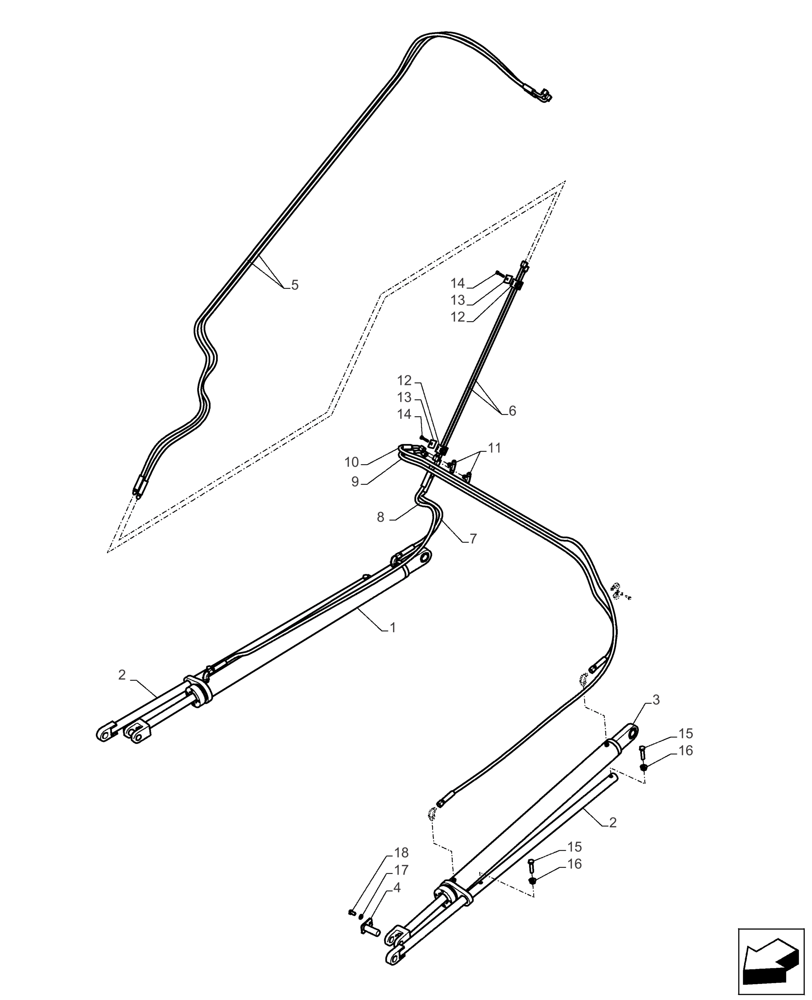

Запчасти Case IH A8000 (80.420.AB[04]) - HYDRAULIC CYLINDER - MY-16 (80) - CROP STORAGE/UNLOADING

1

87446624

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod

1шт.

2

87236365

STAY

2шт.

3

87446623

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 914mm Stroke

1шт.

4

87237362

PIN,25mm OD x 75mm L

2шт.

5

47894164

HYDRAULIC HOSE

2шт.

6

87247176

TUBE,9.50 mm ID x 6.30 mm OD x 850 mm L

2шт.

7

87237582

HOSE ASSY.

1шт.

8

87222449

HOSE ASSY.

1шт.

9

86300927

HOSE ASSY.

1шт.

10

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

1шт.

11

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

12

408516

RETAINER

2шт.

13

408517

PLATE

2шт.

14

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

15

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

16

84014971

FLANGE NUT,M12 x 1.75, Cl 8.8

4шт.

17

87613307

WASHER

2шт.

18

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
