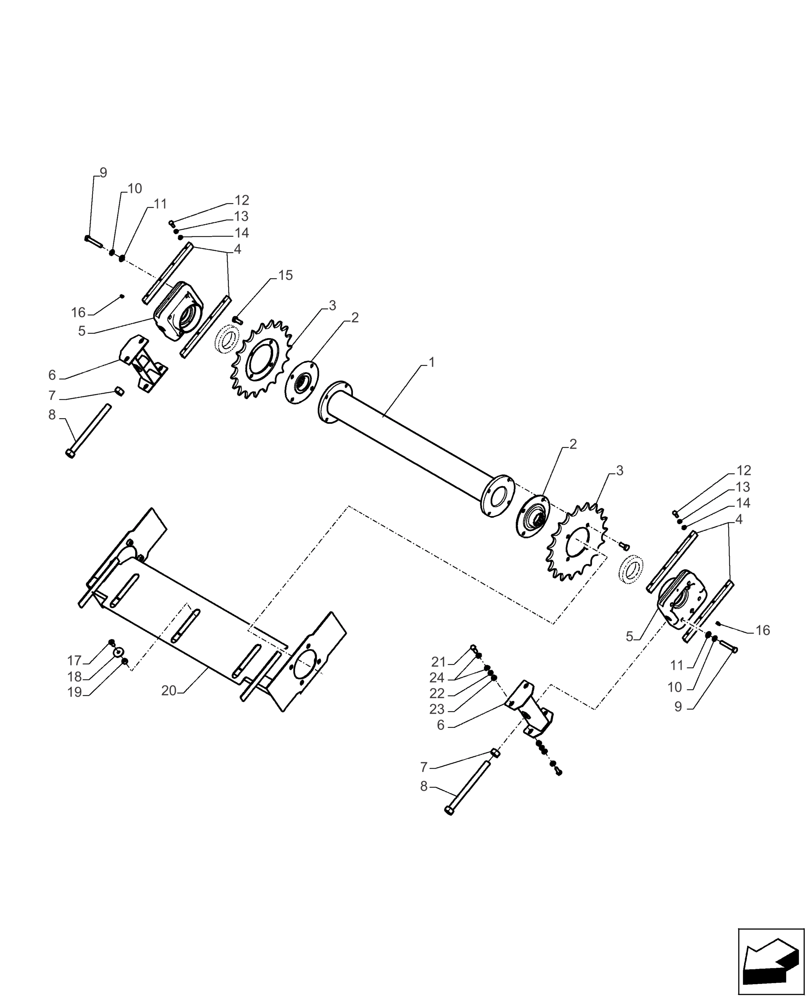

Запчасти Case IH A8000 (80.420.AA[02]) - ELEVATOR DRIVE - MY16 (80) - CROP STORAGE/UNLOADING

1

47865157

ROLLER

1шт.

2

87241854

BOSS

2шт.

3

87241797

SPROCKET ASSY.

2шт.

4

47931771

BAR

4шт.

5

47872317

HOUSING

2шт.

6

47931784

BEAM

2шт.

7

9847024

NUT,M20, Cl 10

1шт.

8

47933017

ROD

2шт.

9

86977776

BOLT,Hex, M12 x 70mm, Cl 8.8, Full Thd

8шт.

10

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

11

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

16шт.

13

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

16шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

16

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

17

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

3шт.

18

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

3шт.

19

412141

NUT,M10 x 1.5, Cl 8

3шт.

20

47951818

FLOOR STAND

1шт.

21

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

22

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

23

86500689

NUT,M10 x 1.5, Cl 10

8шт.

24

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.
