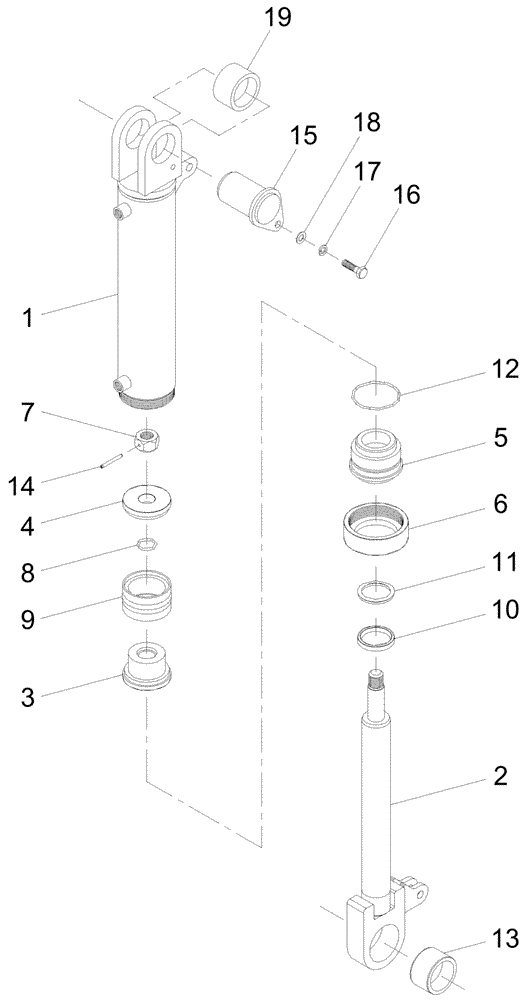

Запчасти Case IH A7000 (B02.10[01]) - Hydraulic Cylinder {Basecutter Lift 7700} (07) - HYDRAULICS

01

87446563

BARREL

Welded Assy

01шт.

01

87414285

LINER, ENGINE CYLIND

Welded Assy

01шт.

+150mm Higt

1шт.

02

450608A1

SHAFT,44.45mm OD x 417mm L

Welded Assy

01шт.

03

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

01шт.

04

86787100

PISTON

01шт.

05

87214804

CYLINDER HEAD

01шт.

06

87045700

SPECIAL NUT

01шт.

07

00606612

NUT

01шт.

08

00100019

O-RING

01шт.

09

00100715

OIL SEAL

01шт.

10

00100722

WIPER SEAL

01шт.

11

00100711

WIPER SEAL

01шт.

12

00100110

O-RING

01шт.

13

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

01шт.

14

00608214

PIN

01шт.

15

450670A1

PIN,50.4mm OD x 90mm L

01шт.

16

FA110020

BOLT

01шт.

17

WB100000

WASHER

01шт.

18

WA100000

WASHER

01шт.

19

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

01шт.

20

87446564

CYLINDER,Double Acting, 44mm Rod, 255mm Stroke

Assy

01шт.

Excludes Items 15-18

1шт.

21

87446620

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 255mm Stroke

Assy

1шт.

+150mm Higt

1шт.

Excludes Items 15-18

1шт.
