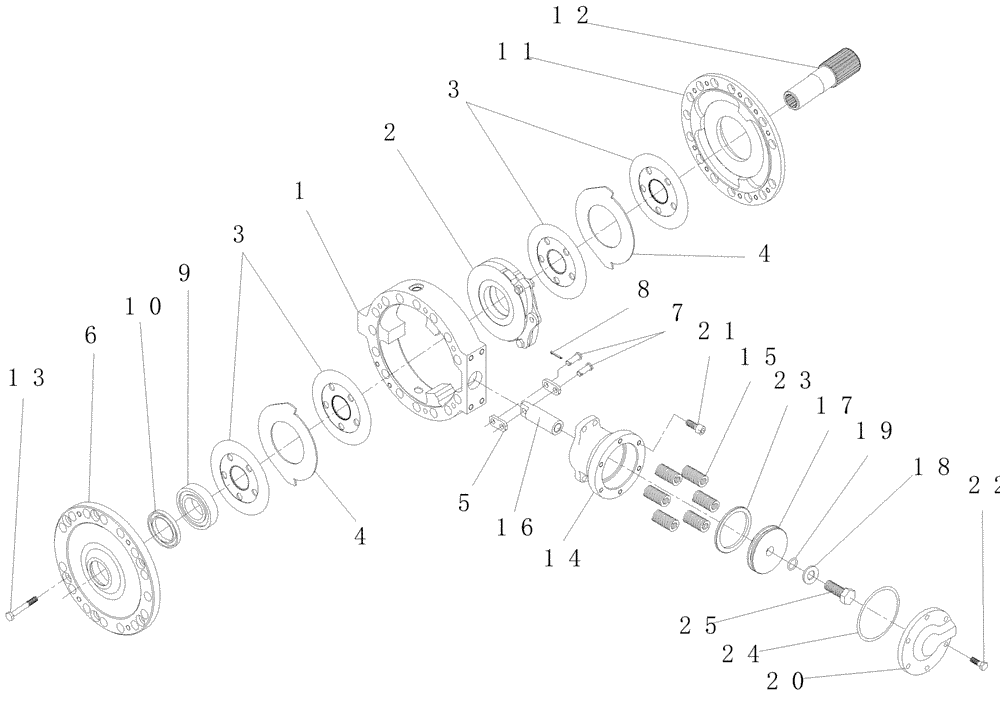

Запчасти Case IH A7000 (A09.04[01]) - Wet Brake {7000} (04) - STEERING

01

446833A1

HOUSING

01шт.

02

182153

BRAKE BOOSTER

01шт.

03

182154

DISC

04шт.

04

398412A1

SHIM,95mm ID x 168mm OD x 2.25mm Thk

02шт.

05

398407A1

LINK

02шт.

06

446834A1

BRAKE PLATE

Outer

01шт.

07

446835A1

PIN,11.1mm OD x 34mm L

02шт.

08

733-3220

COTTER PIN,M3.2 x 20

02шт.

09

144118

HOLDER

01шт.

10

446784A1

OIL SEAL

01шт.

11

446836A1

BRAKE PLATE

Inner

01шт.

12

446837A1

SPLINED COUPLING

01шт.

13

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

06шт.

14

446840A1

HOUSING

01шт.

15

446842A1

COMPRESSION SPRING,Compression, 25.399mm OD x 76mm L

06шт.

16

446841A1

ROD

01шт.

17

446839A1

PISTON

01шт.

18

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

01шт.

19

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

01шт.

20

446838A1

COVER

01шт.

21

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

04шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

06шт.

23

00100721

WIPER SEAL

01шт.

24

86988165

O-RING

01шт.

25

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

01шт.

26

446832A1

BRAKE ASSY.

Assy

01шт.
