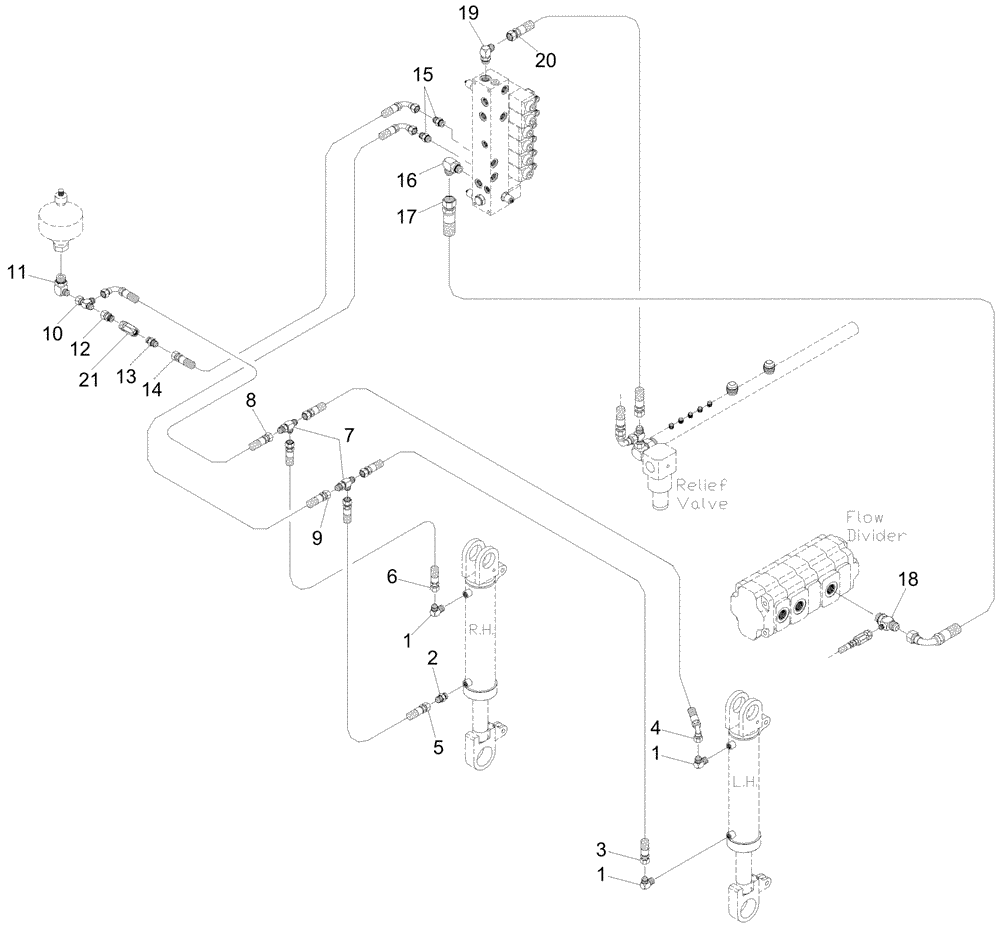

Запчасти Case IH A7000 (B11.05[01]) - Hydraulic Circuit {Basecutter Lift 7700} (07) - HYDRAULICS

01

00400240

HYD CONNECTOR

03шт.

02

00400093

HYD CONNECTOR

01шт.

03

87401092

HOSE,9.53mm ID x 1870mm L, SAE 100R17

01шт.

03

87424964

HOSE,9.53mm ID x 1970mm L, SAE 100R17

Louisiana Only

01шт.

04

87401091

HOSE,9.53mm ID x 1520mm L, SAE 100R17

01шт.

04

87424963

HOSE,9.53mm ID x 1670mm L, SAE 100R17

Louisiana Only

01шт.

05

87401090

HOSE,9.53mm ID x 800mm L, SAE 100R17

01шт.

05

87424962

HOSE,9.53mm ID x 900mm L, SAE 100R17

Louisiana Only

01шт.

06

87401089

HOSE,9.53mm ID x 970mm L, SAE 100R17

01шт.

06

87247518

HOSE ASSY.

Louisiana Only

01шт.

07

00408876

TEE

02шт.

08

374256A1

HOSE,9.53mm ID x 1140mm L, SAE 100R17

01шт.

09

87401088

HOSE,9.53mm ID x 980mm L, SAE 100R17

01шт.

10

00404787

TEE

01шт.

11

00404772

HYD CONNECTOR

01шт.

12

87422020

HYD CONNECTOR

01шт.

13

00404766

HYD CONNECTOR

01шт.

14

87256256

HOSE ASSY.

01шт.

15

00400093

HYD CONNECTOR

02шт.

16

00400227

HYD CONNECTOR

01шт.

17

86330600

HOSE ASSY.

01шт.

18

87421571

TEE

01шт.

19

00400242

HYD CONNECTOR

01шт.

20

87242175

HOSE,12.7mm ID x 720mm L, SAE 100R17

01шт.

21

87236579

VALVE, CHECK

01шт.
