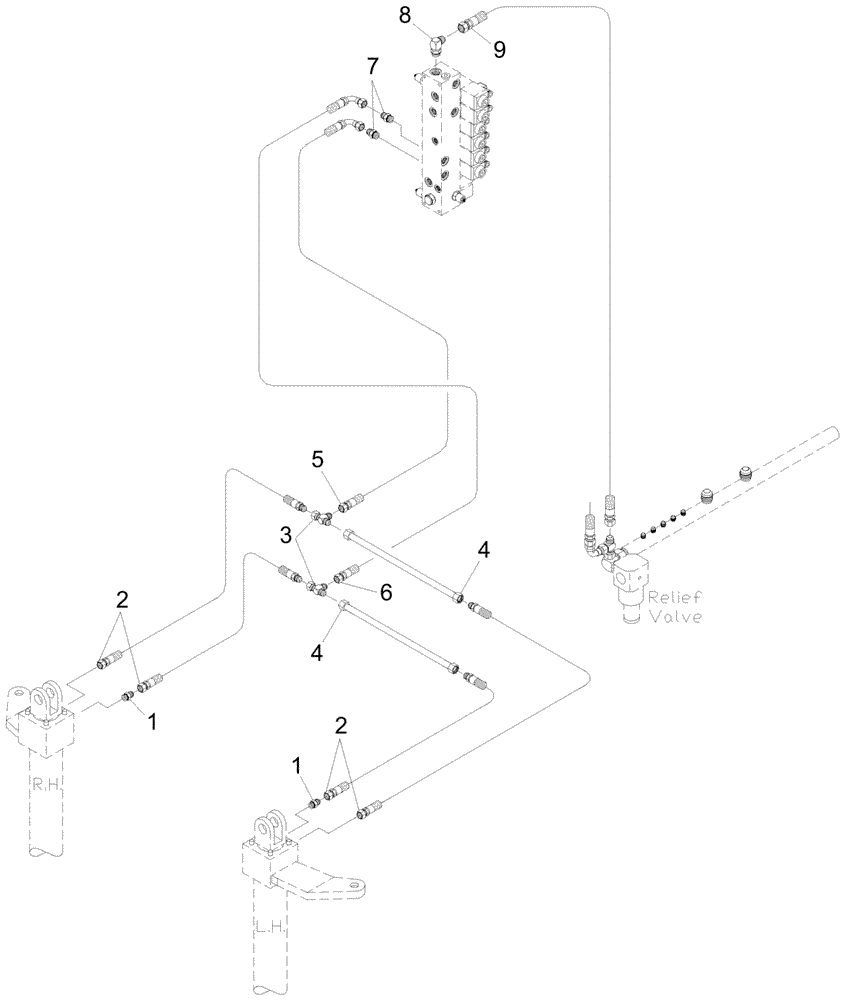

Запчасти Case IH A7000 (B11.04[01]) - Hydraulic Circuit {Basecutter Lift 7000} (07) - HYDRAULICS

01

00400165

HYD CONNECTOR

02шт.

02

87423903

HOSE,9.53mm ID x 1050mm L, SAE 100R17

04шт.

03

00404787

TEE

02шт.

04

87423723

TUBE,12.7 mm DIA x 1100 mm L

02шт.

05

87256256

HOSE ASSY.

02шт.

06

87256254

HOSE,9.53mm ID x 730mm L, SAE 100R17

01шт.

07

00400093

HYD CONNECTOR

02шт.

08

00400242

HYD CONNECTOR

01шт.

09

87242175

HOSE,12.7mm ID x 720mm L, SAE 100R17

01шт.
