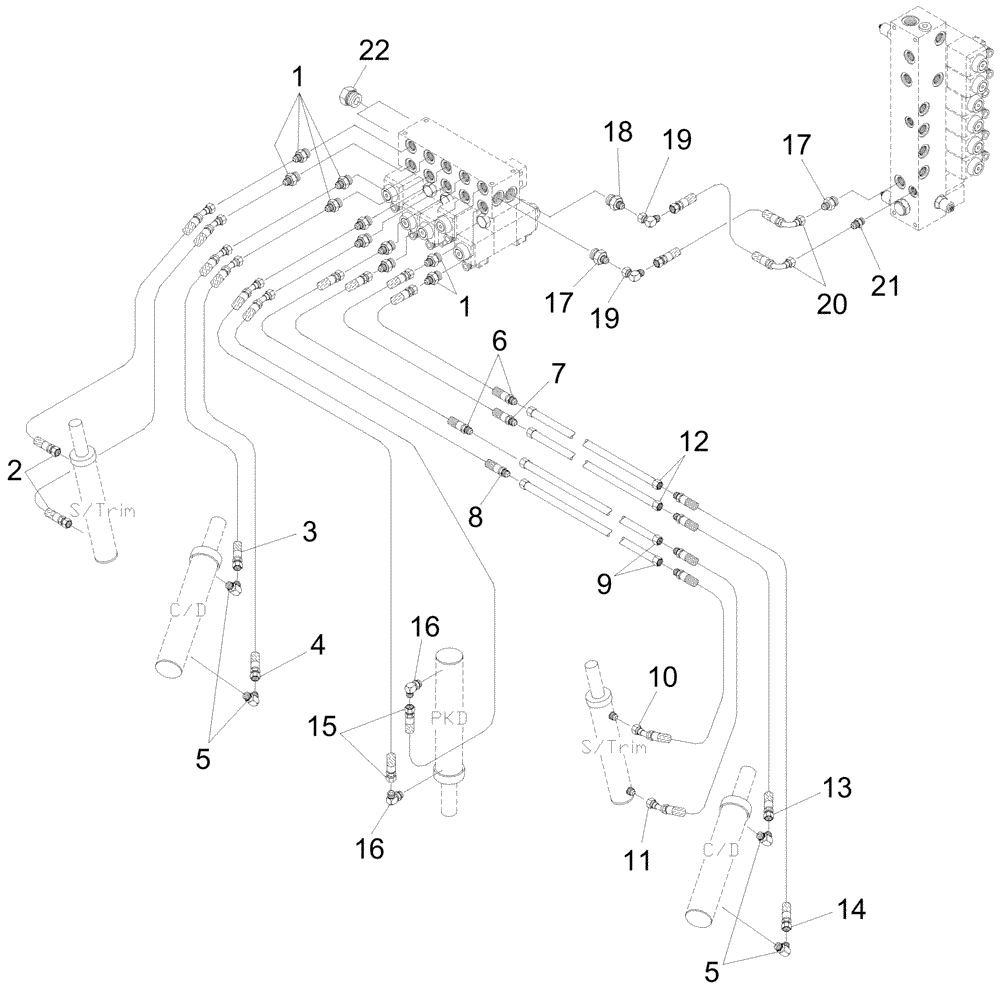

Запчасти Case IH A7000 (B11.02[01]) - Hydraulic Circuit {PKD Roller / Cropdivider and Sidetrim Lift} (07) - HYDRAULICS

01

00400224

HYD CONNECTOR

10шт.

02

87256265

HOSE ASSY.

02шт.

02

87261157

FLEXIBLE HOSE

Cropdivider 45°

02шт.

03

86988676

HOSE,6.35mm ID x 1500mm L, SAE 100R17

01шт.

04

87255998

HOSE,6.35mm ID x 1670mm L, SAE 100R17

01шт.

05

00400238

HYD CONNECTOR

04шт.

06

87423020

HOSE,6.35mm ID x 610mm L, SAE 100R17

02шт.

07

87423019

HOSE,6.35mm ID x 650mm L, SAE 100R17

01шт.

08

87238307

HOSE,6.35mm ID x 570mm L, SAE 100R17

01шт.

09

87423825

TUBE,9.5 mm DIA x 1150 mm L

02шт.

10

87423017

HOSE,6.35mm ID x 2000mm L, SAE 100R17

01шт.

10

87461155

HOSE ASSY.

Cropdivider 45°

01шт.

11

87423018

HOSE,6.35mm ID x 2100mm L, SAE 100R17

01шт.

11

87461156

HOSE ASSY.

Cropdivider 45°

01шт.

12

87423827

TUBE,9.5 mm DIA x 1100 mm L

02шт.

13

87423015

HOSE,6.35mm ID x 1800mm L, SAE 100R17

01шт.

14

87423016

HOSE,6.35mm ID x 1950mm L, SAE 100R17

01шт.

15

86988883

HOSE,6.35mm ID x 2300mm L, SAE 100R17

02шт.

16

00402475

HYD CONNECTOR

02шт.

17

00400224

HYD CONNECTOR

02шт.

18

444074A1

HYD CONNECTOR

01шт.

19

00402879

HYD CONNECTOR

02шт.

20

86310227

HOSE ASSY.

02шт.

21

00400223

HYD CONNECTOR

01шт.

22

00400106

HYD CONNECTOR

02шт.
