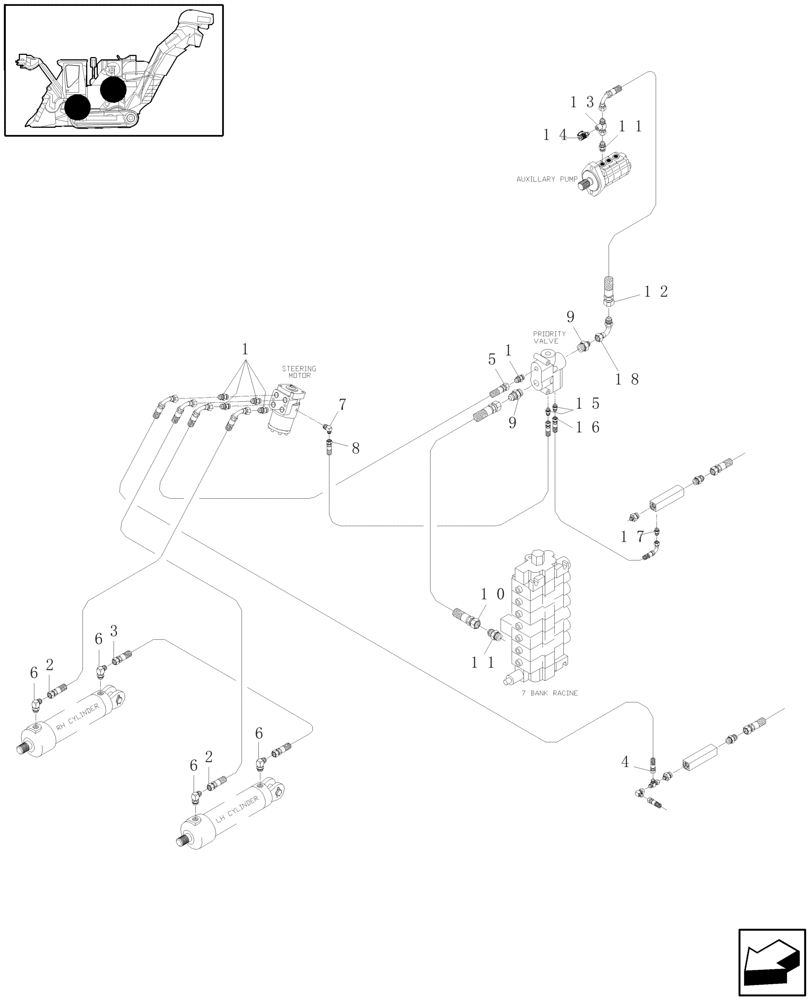

Запчасти Case IH A4000 (B06.16[01]) - HYDRAULIC CIRCUIT (STEERING MOTOR & CYLINDERS) Hydraulic Components & Circuits

1

00400093

HYD CONNECTOR

5шт.

2

87245718

HOSE,9.53mm ID x 2051mm L, SAE 100R17

2шт.

3

82713400

HOSE,9.53mm ID x 578mm L, SAE 100R17

1шт.

4

87234378

HOSE,9.53mm ID x 1520mm L, SAE 100R17

1шт.

5

86305846

HOSE,9.53mm ID x 1950mm L, SAE 100R17

1шт.

6

00400240

HYD CONNECTOR

4шт.

7

00405242

HYD CONNECTOR

1шт.

8

87247522

HOSE ASSY.,6.35mm ID x 2170mm L, SAE 100R17

1шт.

9

00400230

HYD CONNECTOR

2шт.

10

87421990

HOSE,12.7mm ID x 2920mm L, SAE 100R17

1шт.

11

00400228

HYD CONNECTOR

2шт.

12

86314669

HOSE,12.7mm ID x 690mm L, SAE 100R16

1шт.

13

87217706

ELEC CONNECTOR

1шт.

14

00405498

SCREW ON COUPLING

1шт.

15

00402235

HYD CONNECTOR

1шт.

16

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

1шт.

17

00400223

HYD CONNECTOR

1шт.

18

00407516

HYD CONNECTOR

1шт.
