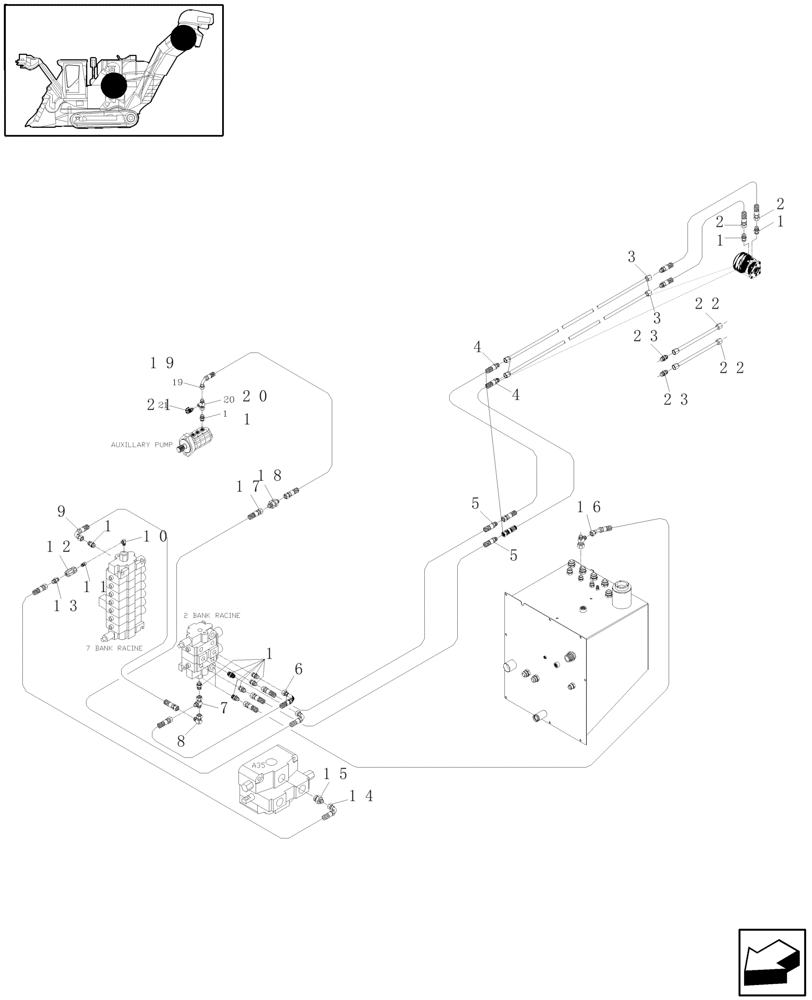

Запчасти Case IH A4000 (B06.14[01]) - HYDRAULIC CIRCUIT (ELEVATOR MOTOR) Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

10шт.

2

446906A1

HOSE,12.7mm ID x 630mm L, SAE 100R16

2шт.

3

433979A1

TUBE

2шт.

4

447845A1

HOSE,12.7mm ID x 2530mm L, SAE 100R16

2шт.

5

447844A1

HOSE,12.7mm ID x 2580mm L, SAE 100R16

2шт.

6

87214292

HOSE ASSY.

1шт.

7

00404679

TEE

1шт.

8

00407516

HYD CONNECTOR

1шт.

9

86306228

HOSE,12.7mm ID x 840mm L, SAE 100R17

1шт.

10

00400242

HYD CONNECTOR

1шт.

11

447087A1

ADAPTER

1шт.

12

REF

INSTRUCTION

Hydraulic Valve Check, Ref. B05.08

1шт.

13

409409

HYD CONNECTOR

1шт.

14

83126100

HOSE,12.7mm ID x 1300mm L, SAE 100R16

1шт.

15

00405533

HYD CONNECTOR

1шт.

16

87421990

HOSE,12.7mm ID x 2920mm L, SAE 100R17

1шт.

17

0087226060

SLEEVE

1шт.

18

00400069

LUBE NIPPLE

1шт.

19

86309806

HOSE,12.7mm ID x 830mm L, SAE 100R16

1шт.

20

87217706

ELEC CONNECTOR

1шт.

21

00405498

SCREW ON COUPLING

1шт.

22

433981A1

TUBE

Extended Elevator

2шт.

23

00400179

HYD CONNECTOR

2шт.
