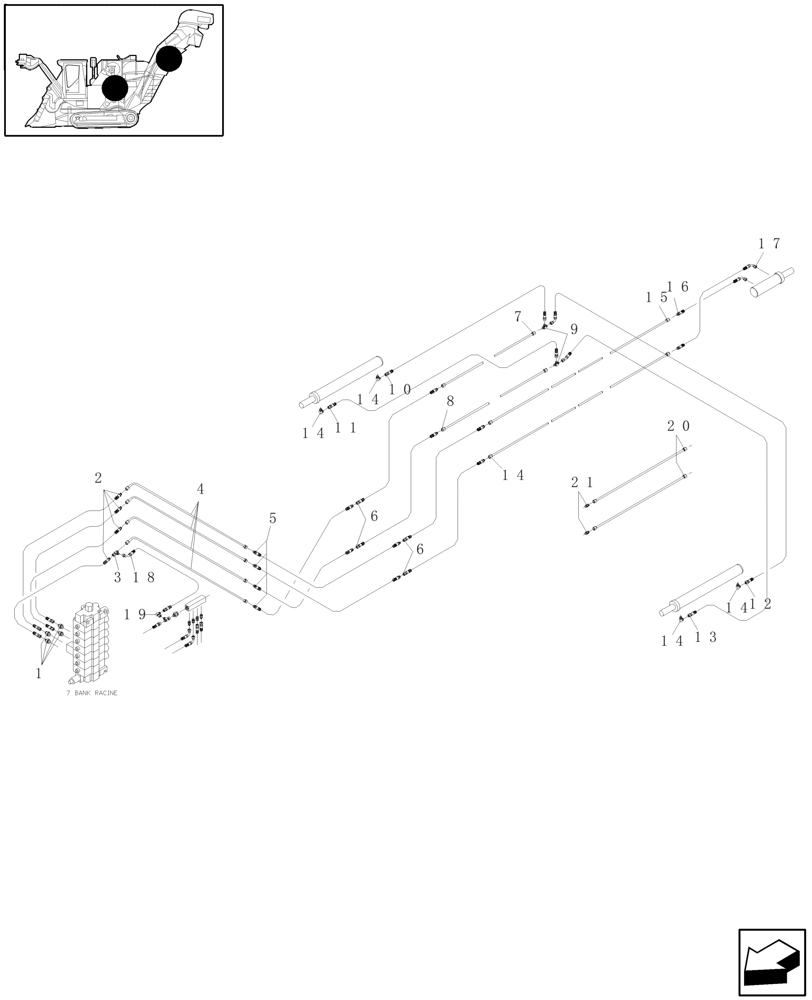

Запчасти Case IH A4000 (B06.13[01]) - HYDRAULIC CIRCUIT (ELEVATOR LIFT & BIN FLAP CYLINDERS) Hydraulic Components & Circuits

1

00400074

HYD CONNECTOR

4шт.

2

87227710

HOSE,6.35mm ID x 1050mm L, SAE 100R17

4шт.

3

00404677

TEE

1шт.

4

443507A1

TUBE

4шт.

5

447842A1

HOSE,6.35mm ID x 1500mm L, SAE 100R17

4шт.

6

447965A1

HOSE,6.35mm ID x 2590mm L, SAE 100R17

4шт.

7

443511A1

TUBE

Top

1шт.

8

443509A1

TUBE

Bottom

1шт.

9

00400207

TEE

2шт.

10

81677900

HOSE ASSY.,6.35 mm ID x 760.00 mm, SAE 100R17

1шт.

11

87248824

HOSE,6.35mm ID x 1350mm L, SAE 100R17

1шт.

12

87222375

HOSE,6.35mm ID x 1750mm L, SAE 100R17

1шт.

13

87239143

HOSE,6.35mm ID x 2490mm L, SAE 100R17

1шт.

14

00400238

HYD CONNECTOR

4шт.

15

433983A1

TUBE

Bin Flap

2шт.

16

446904A1

HOSE,6.35mm ID x 1250mm L, SAE 100R17

1шт.

17

446905A1

HOSE,6.35mm ID x 1350mm L, SAE 100R17

1шт.

18

86315450

HOSE

1шт.

19

00402879

HYD CONNECTOR

1шт.

20

433985A1

TUBE

Extended Elevator

2шт.

21

00400177

HYD CONNECTOR

2шт.
