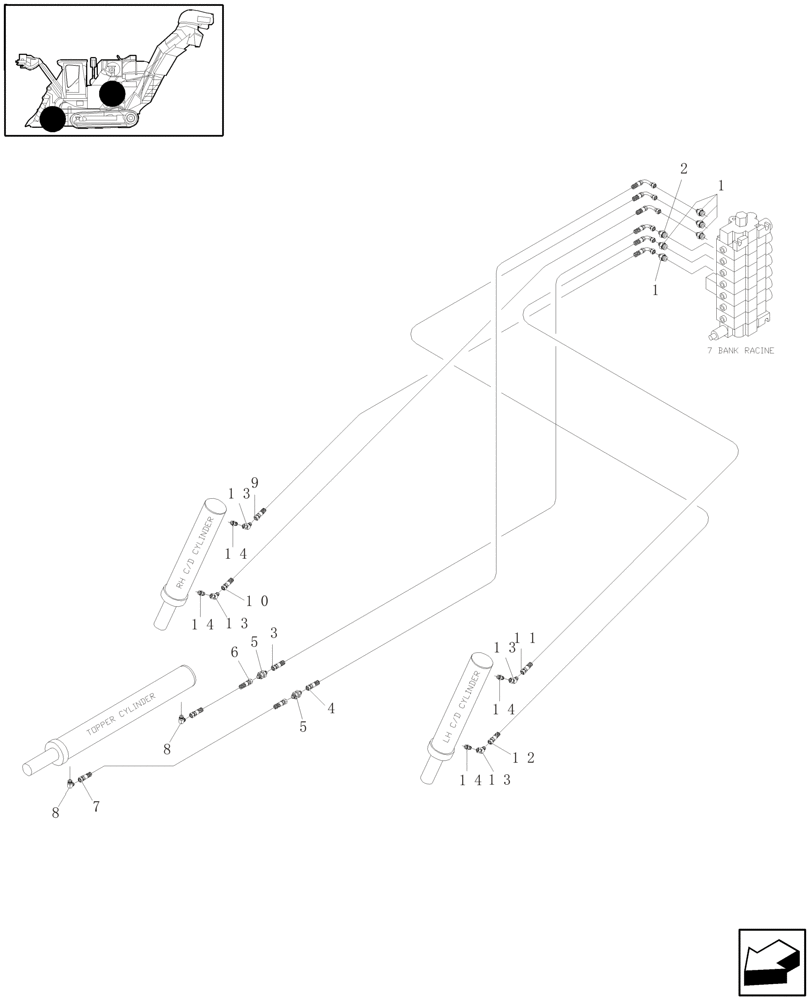

Запчасти Case IH A4000 (B06.11[01]) - HYDRAULIC CIRCUIT (TOPPER & CROPDIVIDER LIFT CYLINDERS) Hydraulic Components & Circuits

1

00400074

HYD CONNECTOR

5шт.

2

87213953

HYD CONNECTOR

1шт.

3

82702100

HOSE ASSY.

1шт.

4

86331800

HOSE,6.35mm ID x 888mm L, SAE 100R17

1шт.

5

00400070

HYD CONNECTOR

2шт.

6

81677600

HOSE,6.35mm ID x 507mm L, SAE 100R17

1шт.

7

87232555

HOSE,6.35mm ID x 1020mm L, SAE 100R17

1шт.

8

00402475

HYD CONNECTOR

2шт.

9

87250095

HOSE,6.35mm ID x 770mm L, SAE 100R17

1шт.

10

87234644

HOSE ASSY.

1шт.

11

87234662

HOSE,6.35mm ID x 2050mm L, SAE 100R17

1шт.

12

419703A1

HOSE,6.35mm ID x 1800mm L, SAE 100R17

1шт.

13

00405173

HYD CONNECTOR

4шт.

14

00400223

HYD CONNECTOR

4шт.
