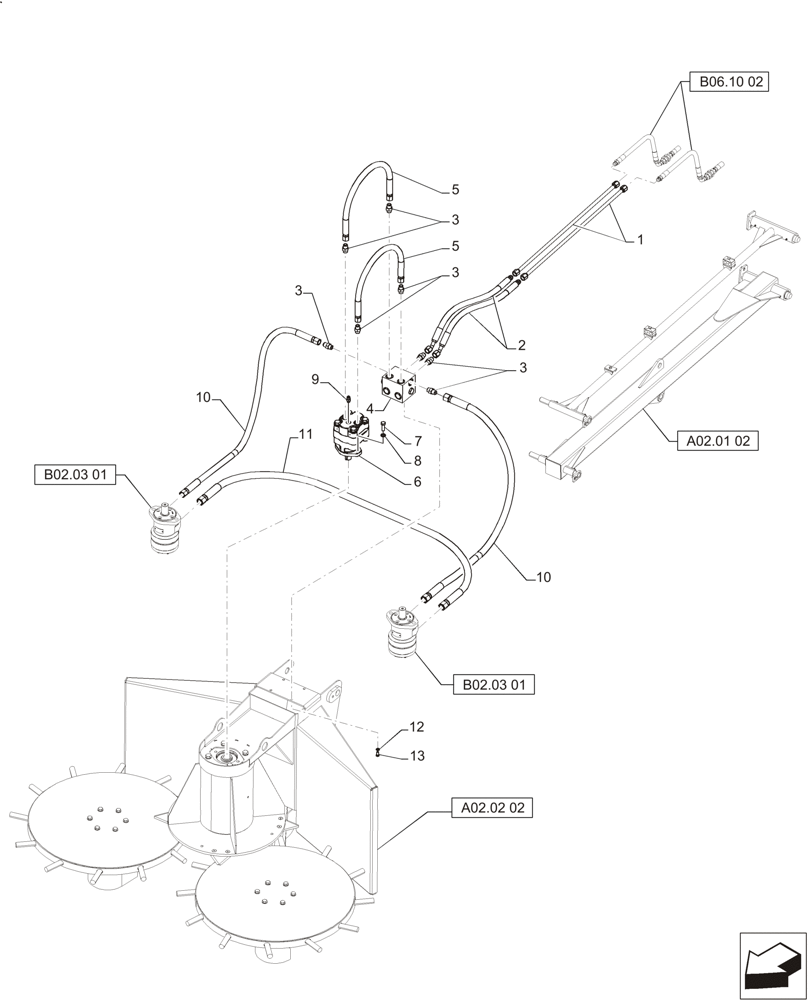

Запчасти Case IH A4000 (B06.10[03]) - HYDRAULIC CIRCUIT (TOPPER & CROPDIVIDER MOTORS) (DOUBLE) Hydraulic Components & Circuits

1

47365251

TUBE

2шт.

2

47361868

HOSE,12.7mm ID x 1030mm L, SAE 100R16

2шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

6шт.

4

47397130

CONTROL BLOCK

1шт.

5

47362413

HOSE,12.7mm ID x 780mm L, SAE 100R16

2шт.

6

406826A1

HYDRAULIC MOTOR

1шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

8

492-11050

LOCK WASHER,1/2"

2шт.

9

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

1шт.

10

47362925

HOSE,12.7mm ID x 1600mm L, SAE 100R16

2шт.

11

47363503

HOSE,12.7mm ID x 1300mm L, SAE 100R16

1шт.

12

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

13

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.
