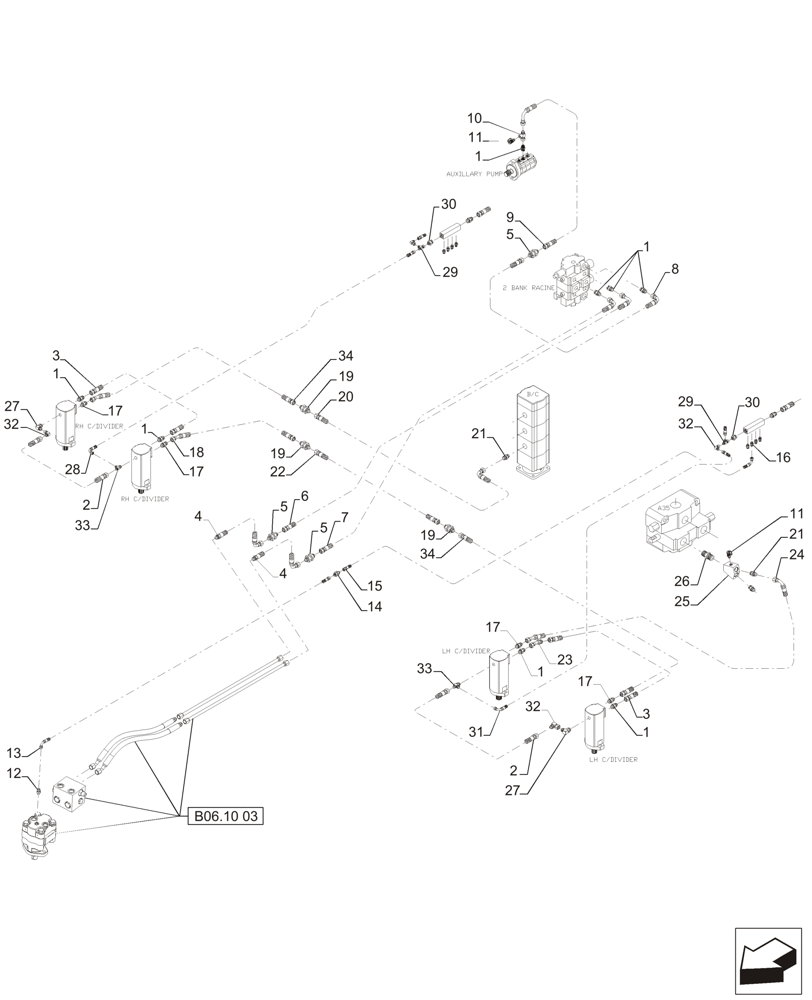

Запчасти Case IH A4000 (B06.10[02]) - HYDRAULIC CIRCUIT (TOPPER & CROPDIVIDER MOTORS) (DOUBLE) Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

4шт.

2

47431707

HOSE,6.35mm ID x 1590mm L, SAE 100R17

2шт.

3

47363530

HOSE,15.88mm ID x 1235mm L, SAE 100R17

2шт.

4

447952A1

HOSE,12.7mm ID x 730mm L, SAE 100R16

2шт.

5

00400069

LUBE NIPPLE

3шт.

6

447843A1

HOSE,12.7mm ID x 1080mm L, SAE 100R16

1шт.

7

86306228

HOSE,12.7mm ID x 840mm L, SAE 100R17

1шт.

8

0087226060

SLEEVE

1шт.

9

448237A1

HOSE,12.7mm ID x 880mm L, SAE 100R16

1шт.

10

87217706

ELEC CONNECTOR

1шт.

11

00405498

SCREW ON COUPLING

2шт.

12

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

1шт.

13

87254527

HOSE,6.35mm ID x 3150mm L, SAE 100R17

1шт.

14

00400070

HYD CONNECTOR

1шт.

15

412149A1

HOSE,6.35mm ID x 810mm L

1шт.

16

00400223

HYD CONNECTOR

1шт.

17

00400229

HYD CONNECTOR

4шт.

18

86301002

HOSE ASSY.

3шт.

19

00400068

HYD CONNECTOR

3шт.

20

82730400

HOSE ASSY.

1шт.

21

00400231

HYD CONNECTOR

2шт.

22

447092A1

HOSE,19.05mm ID x 760mm L, SAE 100R16

1шт.

23

00408418

HYD CONNECTOR

1шт.

24

82760700

HOSE

1шт.

25

87227749

JUNCTION BLOCK

1шт.

26

00405532

HYD CONNECTOR

1шт.

27

00405242

HYD CONNECTOR

2шт.

28

87254224

HOSE,6.35mm ID x 2200mm L, SAE 100R17

1шт.

29

00404677

TEE

2шт.

30

00400224

HYD CONNECTOR

2шт.

31

86327600

HOSE ASSY.

1шт.

32

00402879

HYD CONNECTOR

1шт.

33

403925

2шт.

34

84603123

HYDRAULIC HOSE

2шт.
