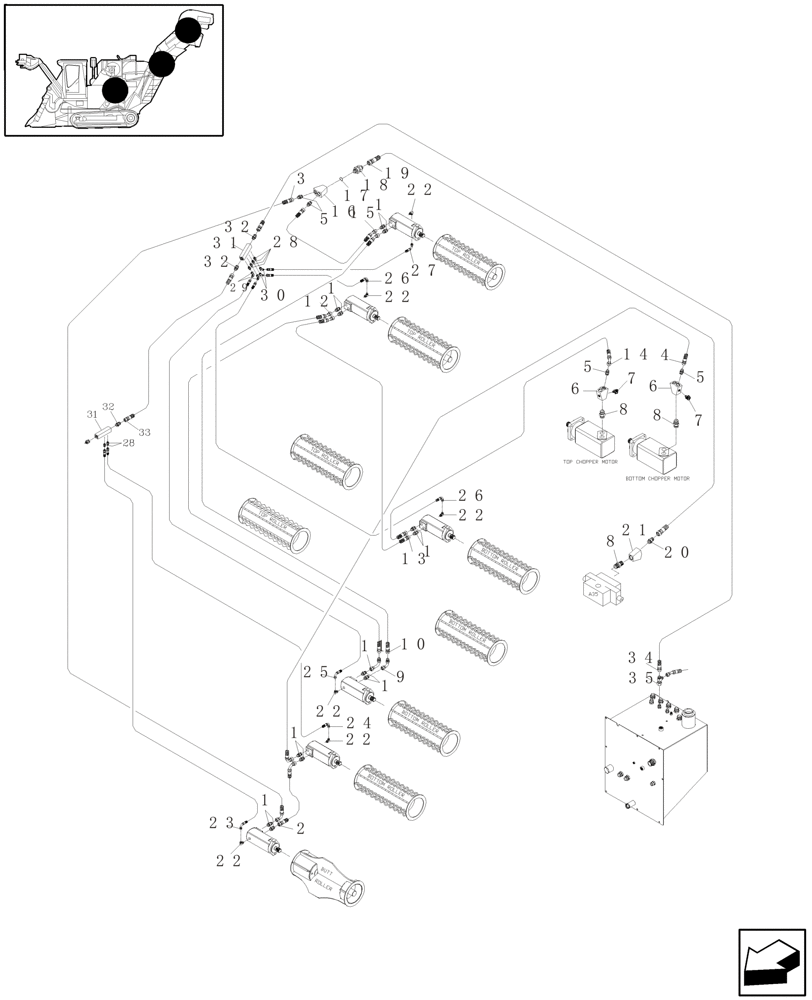

Запчасти Case IH A4000 (B06.08[01]) - HYDRAULIC CIRCUIT (ROLLER MOTOR RHS) Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

12шт.

2

447186A1

HOSE,12.7mm ID x 350mm L, SAE 100R16

1шт.

3

82732900

HOSE ASSY.

1шт.

4

447185A1

HOSE,12.7mm ID x 3530mm L, SAE 100R16

1шт.

5

00400230

HYD CONNECTOR

4шт.

6

87227749

JUNCTION BLOCK

1шт.

7

00405498

SCREW ON COUPLING

2шт.

8

00405532

HYD CONNECTOR

3шт.

9

00407516

HYD CONNECTOR

1шт.

10

447184A1

HOSE,12.7mm ID x 1100mm L, SAE 100R16

1шт.

11

86333900

90 ELBOW

1шт.

12

87236682

HOSE,12.7mm ID x 1150mm L, SAE 100R17

1шт.

13

86311188

HOSE ASSY.

1шт.

14

447093A1

HOSE,12.7mm ID x 2440mm L, SAE 100R16

1шт.

15

86308392

HOSE ASSY.

1шт.

16

442797A1

BLOCK

1шт.

17

00401707

O-RING

1шт.

18

00400068

HYD CONNECTOR

1шт.

19

87235874

HOSE,19.05mm ID x 2310mm L, SAE 100R16

1шт.

20

00400231

HYD CONNECTOR

1шт.

21

87227748

JUNCTION BLOCK

1шт.

22

00405242

HYD CONNECTOR

6шт.

23

86306891

HOSE ASSY.

1шт.

24

87225584

HOSE ASSY.

1шт.

25

86327600

HOSE ASSY.

1шт.

26

385638A1

HOSE,6.35mm ID x 740mm L, SAE 100R17

2шт.

27

86306891

HOSE ASSY.

1шт.

28

00400223

HYD CONNECTOR

6шт.

29

00402879

HYD CONNECTOR

2шт.

30

00405173

HYD CONNECTOR

2шт.

31

00409953

RETURN PIPE

2шт.

32

00400226

HYD CONNECTOR

3шт.

33

79101460

HOSE,12.7mm ID x 1200mm L, SAE 100R16

1шт.

34

82754200

HOSE,12.7mm ID x 1880mm L, SAE 100R17

1шт.

35

00404679

TEE

1шт.
