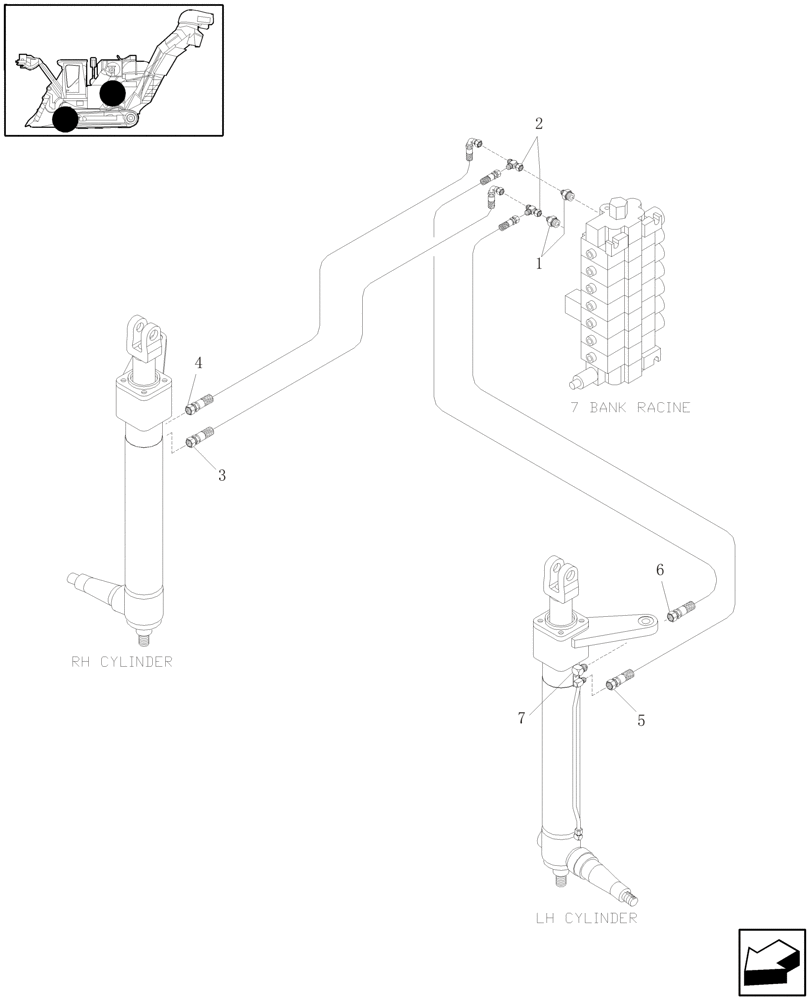

Запчасти Case IH A4000 (B06.04[01]) - HYDRAULIC CIRCUIT (BASECUTTER LIFT CYLINDERS) Hydraulic Components & Circuits

1

00400073

HYD CONNECTOR

2шт.

2

00404787

TEE

2шт.

3

86315156

HOSE,9.53mm ID x 1420mm L, SAE 100R17

1шт.

4

0066001592

SLEEVE

1шт.

5

82748500

HOSE ASSY.

1шт.

6

82761500

HOSE,9.53mm ID x 2190mm L, SAE 100R17

1шт.

7

00400240

HYD CONNECTOR

2шт.
