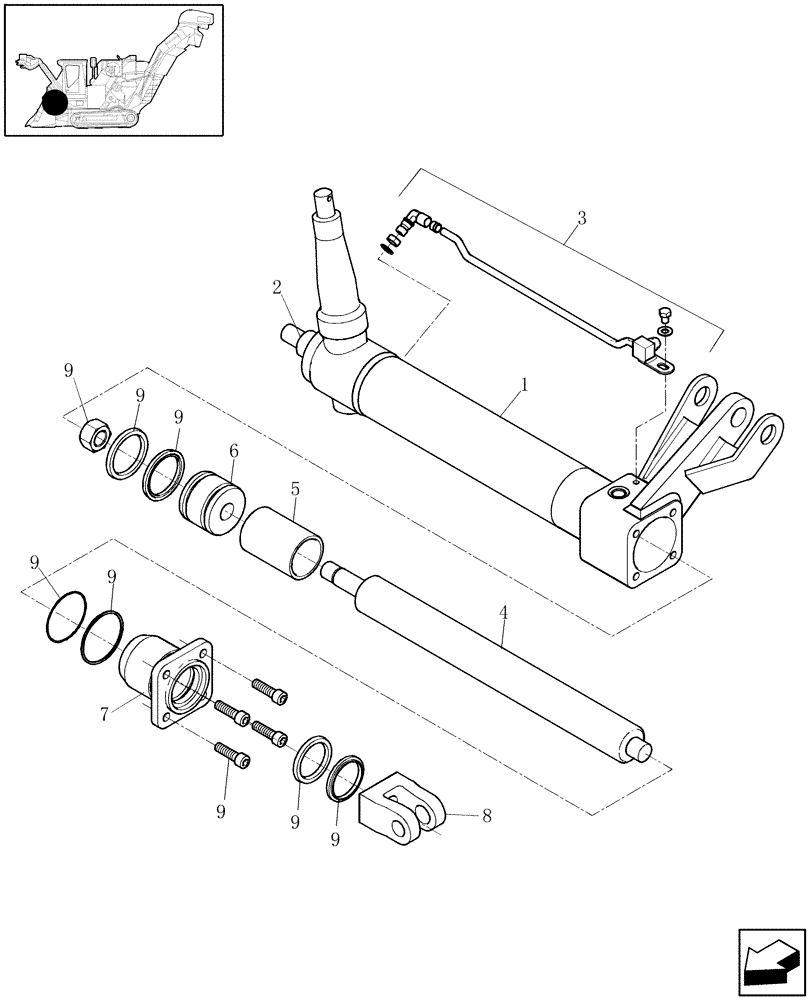

Запчасти Case IH A4000 (B02.03/B[01]) - HYDRAULIC CYLINDER (BASECUTTER LIFT) Hydraulic Components & Circuits

87435934

CYLINDER

Assy

1шт.

1

87435936

BARREL

1шт.

2

NLS

NO LONGER SERVICED

1шт.

3

405057A1

TUBE

1шт.

4

405051A1

SHAFT

1шт.

5

86854200

SPACER,57.35mm ID x 69.85mm OD x 100mm L

1шт.

6

86742100

CYLINDER,76.08mm Bore, 26.44mm Rod, 60mm W

1шт.

7

87213959

WELDED END

1шт.

8

87237343

CLEVIS

1шт.

9

84176878

SEAL KIT

1шт.
