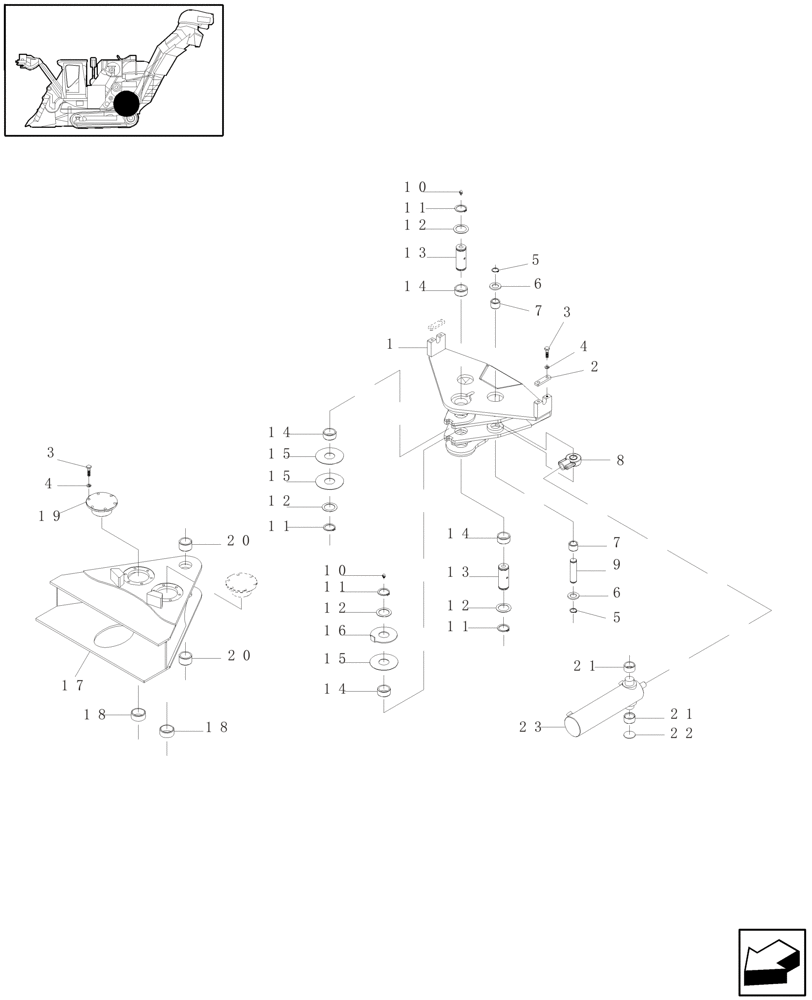

Запчасти Case IH A4000 (A08.01[01]) - ELEVATOR SLEW MECHANISM Mainframe & Functioning Components

1

401507A1

TABLE

Slew

1шт.

2

402382A1

PLATE

2шт.

3

FA112025

BOLT

16шт.

4

WB120000

WASHER

16шт.

5

CE032000

CIRCLIP

4шт.

6

87542957

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

4шт.

7

401489A1

BUSHING,32.14mm ID x 44.71mm OD x 32mm L

4шт.

8

84177145

EYELET

2шт.

9

401496A1

PIN,31.74mm OD x 130mm L

2шт.

10

00139943

LUBE NIPPLE

2шт.

11

103-16200

SNAP RING,#200, Ext

4шт.

12

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

4шт.

13

401493A1

PIN,50.8mm OD x 128mm L

2шт.

14

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

4шт.

15

401487A1

SHIM,51.5mm ID x 140mm OD x 2mm Thk

3шт.

16

401486A1

WASHER

1шт.

17

401491A1

TABLE

With bushes

1шт.

18

401485A1

BUSHING,54.71mm ID x 64.41mm OD x 29.35mm L

2шт.

19

401494A1

BOSS

Cylinder mount

2шт.

20

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

2шт.

21

401484A1

BUSHING

4шт.

22

413119A1

SPACER

2шт.

23

REF

INSTRUCTION

Hydraulic Motor, Ref. B02.06

1шт.
