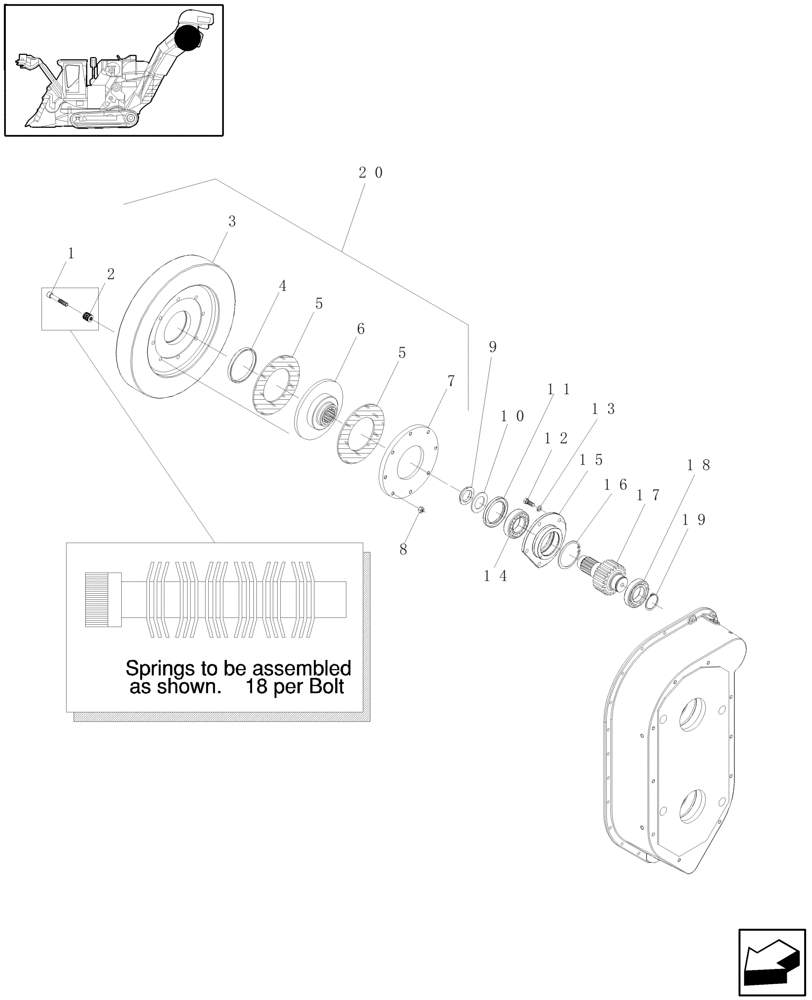

Запчасти Case IH A4000 (A06.02[01]) - CHOPPER FLYWHEEL AND GEARBOX Mainframe & Functioning Components

1

864-12080

HEX SOC SCREW,M12 x 80mm, Cl 8.8

8шт.

2

00130076

WASHER

144шт.

3

87246148

FLYWHEEL

1шт.

4

87220477

BRONZE BUSHING,116.15mm ID x 126.15mm OD x 12mm L

1шт.

5

87220475

SHIM,125mm ID x 220mm OD x 5.15mm Thk

2шт.

6

87220479

ADAPTER

1шт.

7

87220476

CLUTCH, PRESSURE PLA

1шт.

8

829-1412

NUT,M12, Cl 10.9

8шт.

9

9615771

BEARING LOCK NUT,44.026 mm ID x 65 mm OD

1шт.

10

87229334

WASHER,46mm ID x 75mm OD x 4.37mm Thk

1шт.

11

00100717

OIL SEAL

1шт.

12

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

5шт.

14

00140425

BEARING

1шт.

15

87217721

BEARING HOUSING,90 mm ID x 110.06 mm OD x 60 mm

1шт.

16

370026

SNAP RING,M100 x 3mm Thk, Internal

1шт.

17

87217726

GEAR

1шт.

18

00140497

BEARING

1шт.

19

327911

CIRCLIP,55mm ID

1шт.

20

87246147

FLYWHEEL

Assembly, Includes items 1 - 8

1шт.
