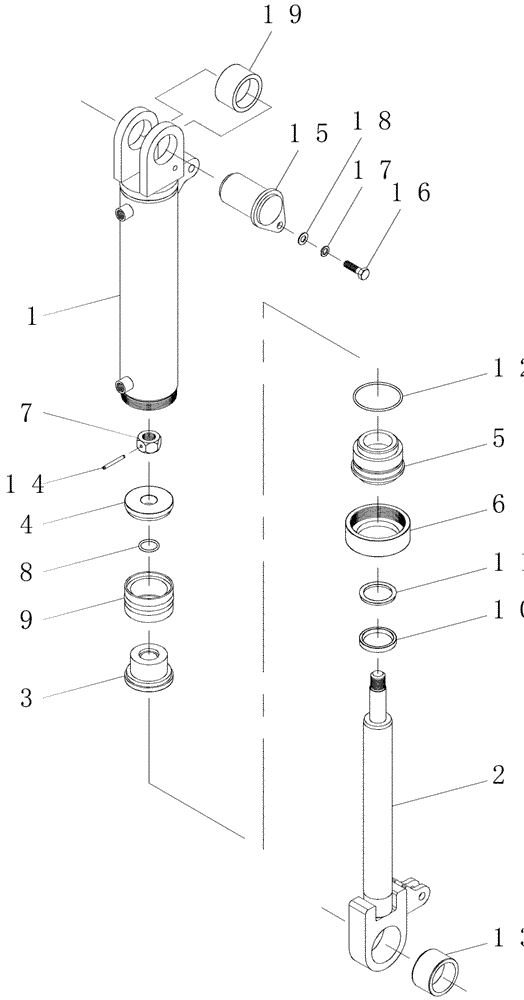

Запчасти Case IH 7700 (B02.10[01]) - Hydraulic Cylinder {Basecutter Lift 7700} (35) - HYDRAULIC SYSTEMS

1

87446563

BARREL

ASSY WELDED

1шт.

1

87414285

LINER, ENGINE CYLIND

ASSY WELDED

1шт.

+150 MM HIGT.

1шт.

2

450608A1

SHAFT,44.45mm OD x 417mm L

ASSY WELDED

1шт.

3

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

1шт.

4

86787100

PISTON

1шт.

5

87214804

CYLINDER HEAD

1шт.

6

87045700

SPECIAL NUT

1шт.

7

606612

1шт.

8

100019

NUT,M14, Cl 8

1шт.

9

100715

NUT

1шт.

10

1007220BS

SHEET METAL

1шт.

11

100711

1шт.

12

100110

DRIVE SHAFT

1шт.

13

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

1шт.

14

608214

1шт.

15

450670A1

PIN,50.4mm OD x 90mm L

1шт.

16

FA110020

BOLT

1шт.

17

WB100000

WASHER

1шт.

18

WA100000

WASHER

1шт.

19

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

1шт.

20

87446564

CYLINDER,Double Acting, 44mm Rod, 255mm Stroke

ASSY

1шт.

EXCLUDES 15-18

1шт.

21

87446620

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 255mm Stroke

ASSY

1шт.

EXCLUDES 15-18

1шт.

+150 MM HIGT.

1шт.
