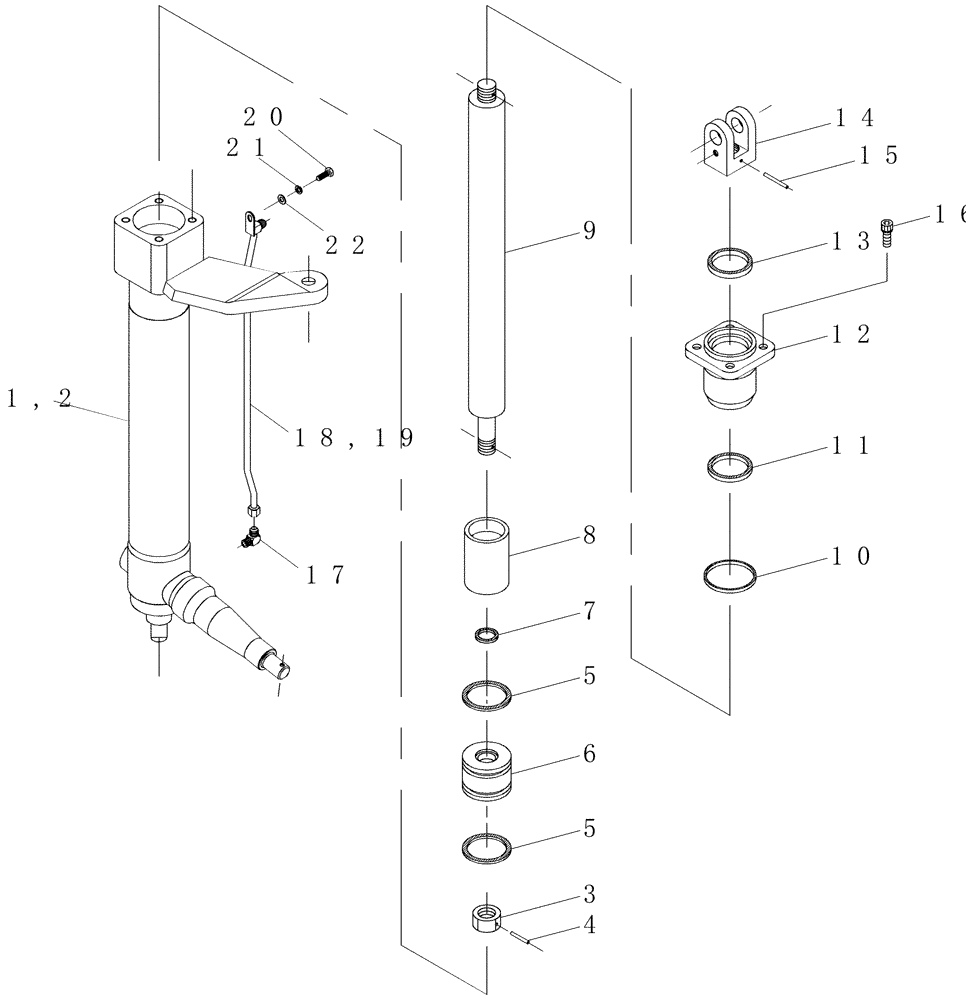

Запчасти Case IH 7700 (B02.09[01]) - Hydraulic Cylinder {Basecutter Lift 7000} (35) - HYDRAULIC SYSTEMS

1

87446472

BARREL

LH, ASSY WELDED

1шт.

2

87446486

BARREL

RH, ASSY WELDED

1шт.

3

606613

1шт.

4

608214

1шт.

5

100710

SHAFT

2шт.

6

86742100

CYLINDER,76.08mm Bore, 26.44mm Rod, 60mm W

1шт.

7

100019

NUT,M14, Cl 8

1шт.

8

86854200

SPACER,57.35mm ID x 69.85mm OD x 100mm L

1шт.

9

86854500

SHAFT,57.15mm OD x 710mm L

1шт.

10

100112

DRIVE SHAFT

1шт.

11

NLS

NO LONGER SERVICED

1шт.

12

87213959

WELDED END

1шт.

13

100719

ARM

1шт.

14

86786800

CLEVIS

1шт.

15

606412

ANGLE

1шт.

16

FC112035

SCREW,M12 x 1.75 x 35mm

4шт.

17

400188

1шт.

18

87251287

TUBE,9.50 mm OD x 541 mm L

LH, ASSY WELDED

1шт.

19

87251288

TUBE,9.50 mm OD x 541 mm L

RH, ASSY WELDED

1шт.

20

FA110020

BOLT

1шт.

21

WB100000

WASHER

1шт.

22

WA100000

WASHER

1шт.

23

948963

1шт.

24

87446406

CYLINDER,57.15mm Rod, 368.4mm Stroke

ASSY, LH

1шт.

25

87446407

CYLINDER,57.15mm Rod, 368.4mm Stroke

ASSY, RH

1шт.
