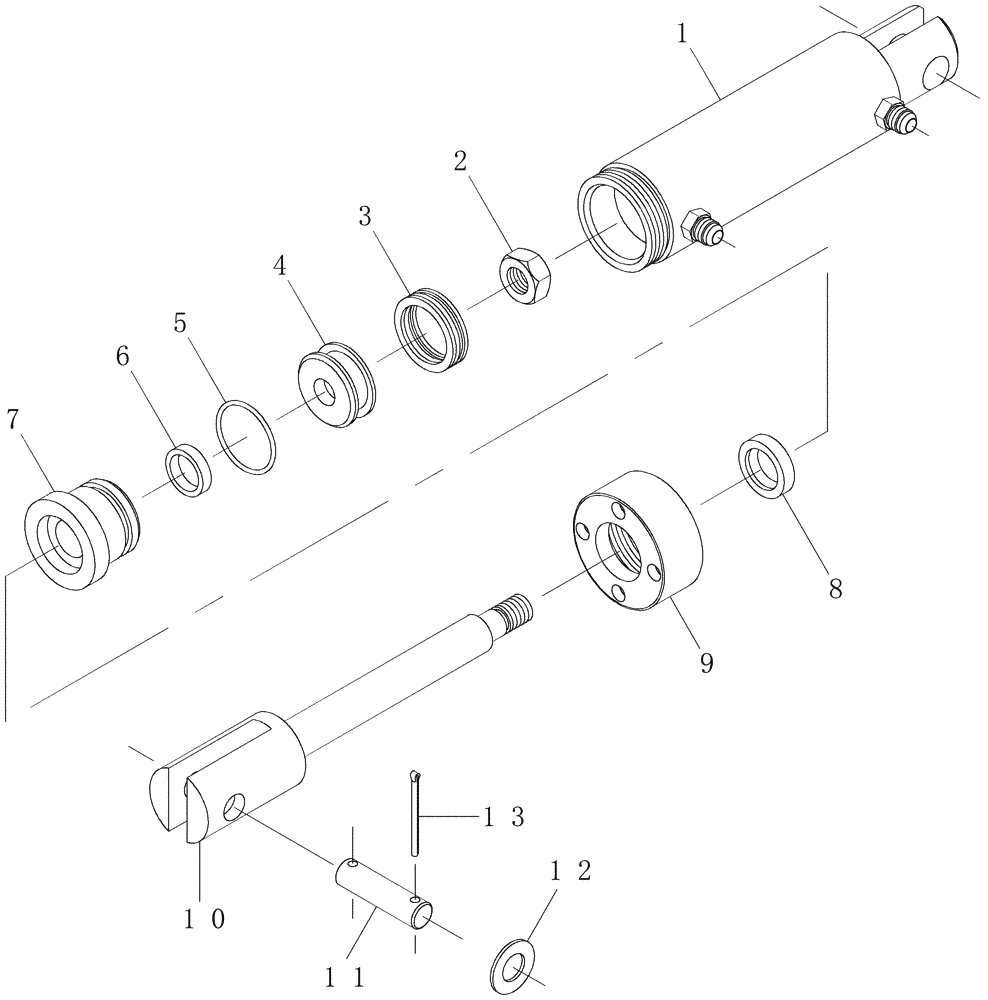

Запчасти Case IH 7700 (B02.08[01]) - Hydraulic Cylinder {Extractor Bin Flap} (35) - HYDRAULIC SYSTEMS

1

87231204

CYLINDER,44.45mm Bore Dia

1шт.

2

605804

SHAFT

SPARE PART SHAFT

1шт.

3

100728

FLANGE

1шт.

4

87231206

PISTON

1шт.

5

100027

1шт.

6

NLS

NO LONGER SERVICED

(100759)

1шт.

7

87463203

PISTON,54mm Bore, 34.95mm Rod, 40.5mm W

1шт.

8

100552

1шт.

9

87213507

NUT

1шт.

10

87231205

SHAFT

1шт.

11

82087400

PIN,15.88mm OD x 68mm L

2шт.

12

WA160000

WASHER

4шт.

13

SA050050

COTTER PIN

4шт.

14

948956

1шт.

15

87231203

CYLINDER,Double Acting, 22.2mm Rod, 100mm Stroke

ASSY

1шт.

EXCLUDES 11-13

1шт.
