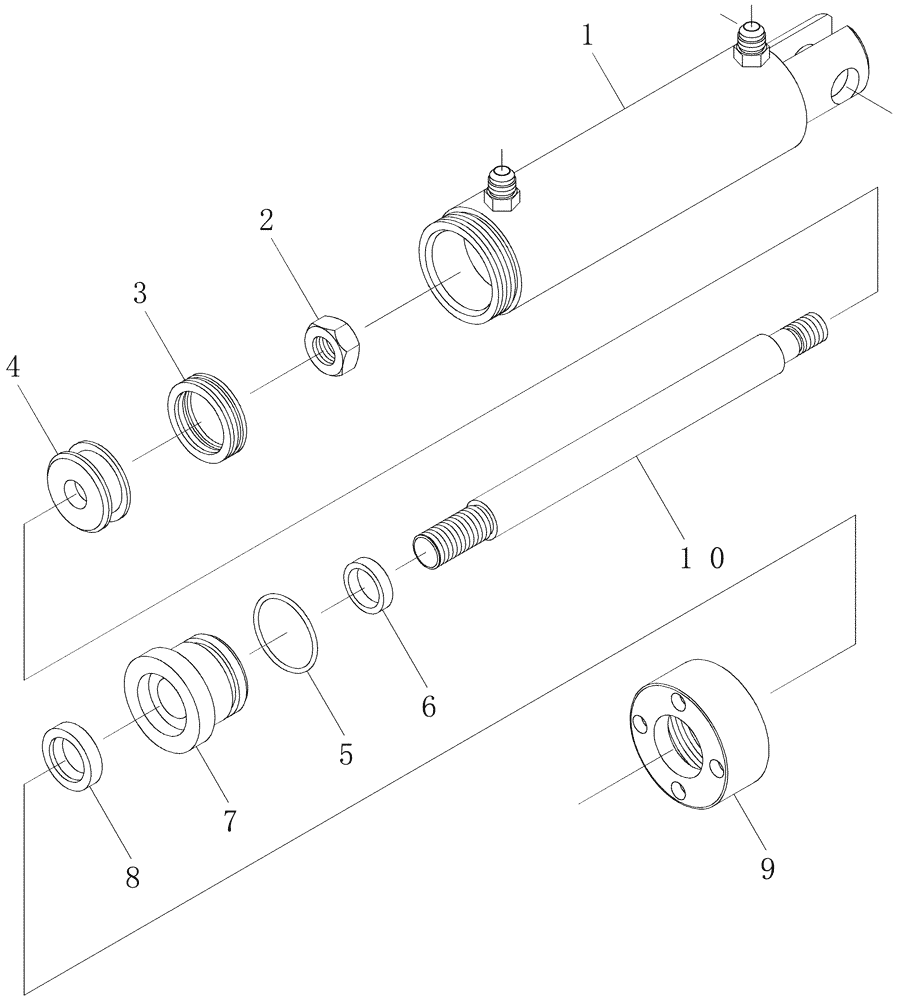

Запчасти Case IH 7700 (B02.03[01]) - Hydraulic Cylinder {Sidetrim Knives Std&45°} (35) - HYDRAULIC SYSTEMS

1

87255087

BARREL

LH

1шт.

1

87254853

BARREL

RH

1шт.

1

87404770

CYLINDER

LH, 45°

1шт.

1

87404771

CYLINDER,44.45mm Bore Dia

RH, 45°

1шт.

2

605804

SHAFT

SPARE PART SHAFT

1шт.

3

100728

FLANGE

1шт.

4

87231206

PISTON

1шт.

5

100027

1шт.

6

87463205

SEAL

1шт.

7

87463203

PISTON,54mm Bore, 34.95mm Rod, 40.5mm W

1шт.

8

100552

1шт.

9

87213507

NUT

1шт.

10

87451120

PISTON ROD/GLAND

1шт.

10

87404773

SHAFT

45°

1шт.

11

948956

1шт.

12

87451116

CYLINDER,Double Acting, 22.23mm Rod

ASSY, LH

1шт.

12

87451119

CYLINDER,Double Acting, 22.23mm Rod, 300mm Stroke

ASSY, RH

1шт.

12

87463166

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod

ASSY, LH, 45°

1шт.

12

87463165

HYDRAULIC CYLINDER

ASSY, RH, 45°

1шт.
