(B13.03[01]) - Hydraulic Circuit {Air Conditioner Eng. 10,3L}

Запчасти Case IH 7700 (B13.03[01]) - Hydraulic Circuit {Air Conditioner Eng. 10,3L} (35) - HYDRAULIC SYSTEMS

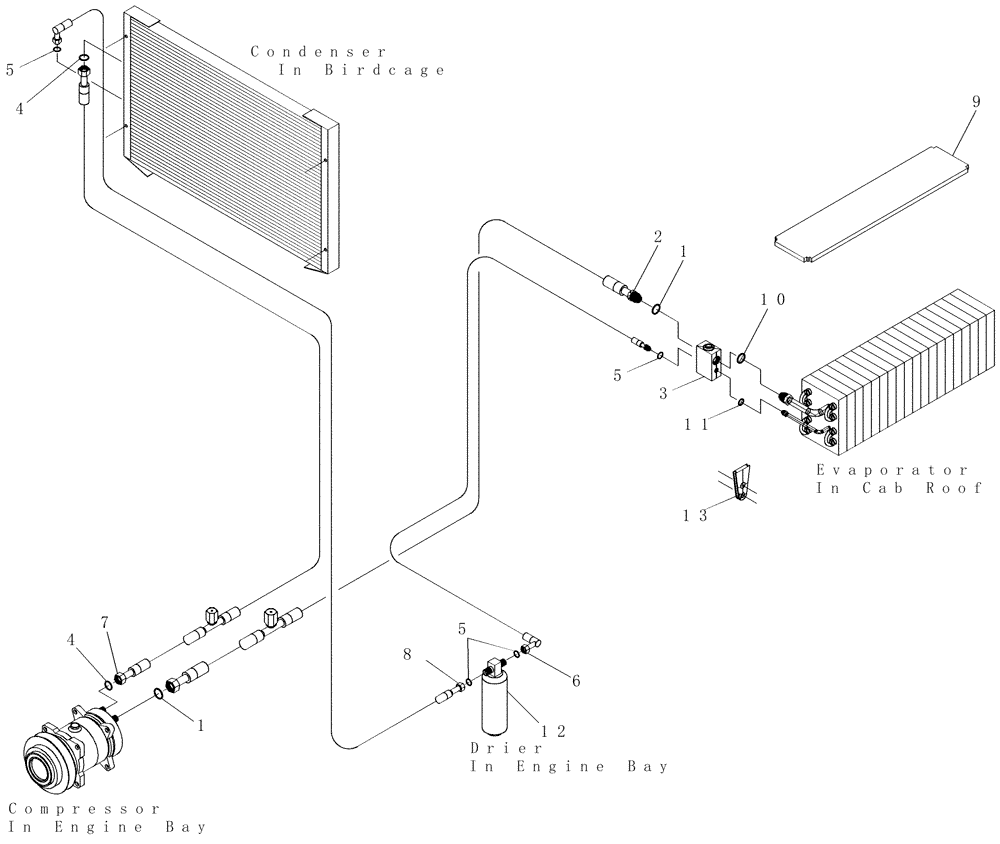

Схема запчастей Case IH 7700 - (B13.03[01]) - Hydraulic Circuit {Air Conditioner Eng. 10,3L} (35) - HYDRAULIC SYSTEMS
13
compressor
3
7
in birdcage
8
4
5
12
condenser
9
5
11
in cab roof
10
1
2
6
evaporator
5
drier
in engine bay
in engine bay
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

181115

BOLT

2шт.

2

87461529

FLEXIBLE HOSE

1шт.

3

1990756C2

VALVE

1шт.

4

181114

BOLT,3/8" x 1 1/4"

2шт.

5

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

6

87461526

FLEXIBLE HOSE

1шт.

7

87461528

SLEEVE

1шт.

8

87461527

FLEXIBLE HOSE

1шт.

9

222385A1

SEAL

1шт.

10

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

11

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

12

86992915

RECEIVER-DRYER

1шт.

13

193111A2

GROMMET

1шт.
