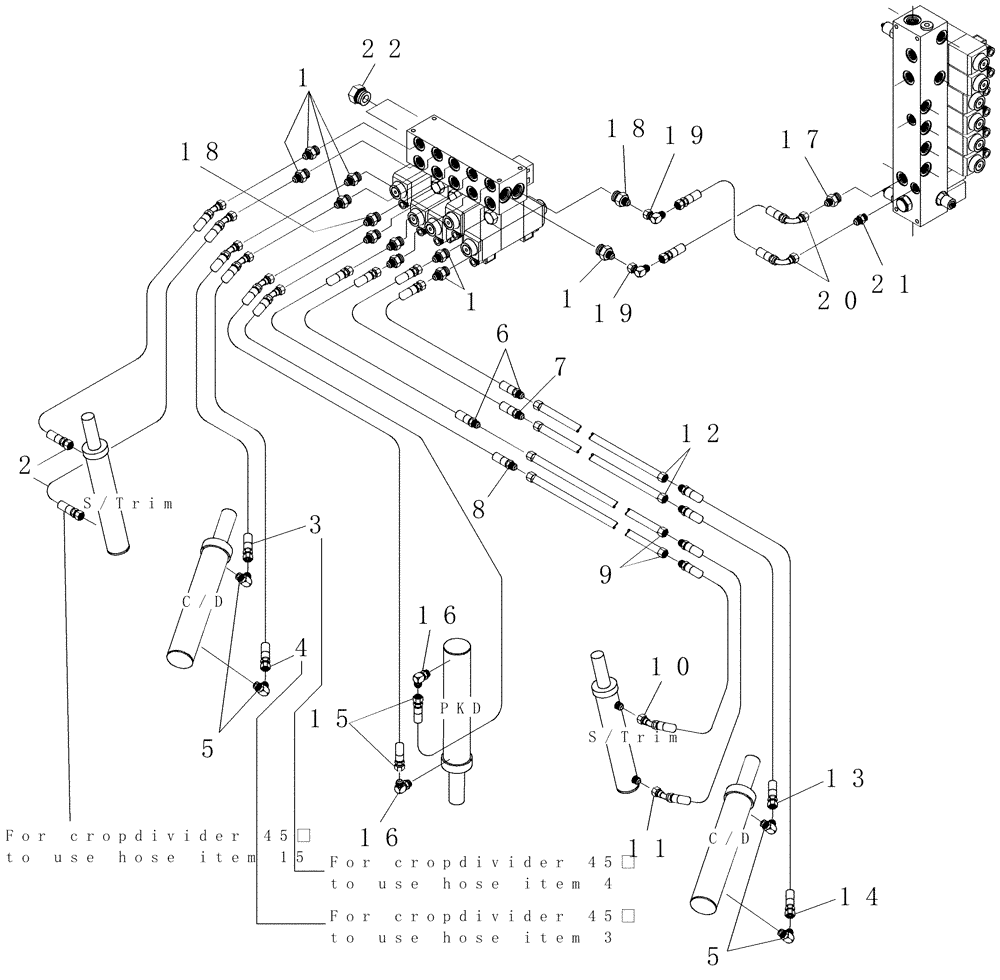

Запчасти Case IH 7700 (B11.02[01]) - Hydraulic Circuit {PKD Roller / Cropdivider and Sidetrim Lift} (35) - HYDRAULIC SYSTEMS

1

400224

JOINT

10шт.

2

87256265

HOSE ASSY.

2шт.

2

87261157

FLEXIBLE HOSE

DIV. 45°

2шт.

3

86988676

HOSE,6.35mm ID x 1500mm L, SAE 100R17

1шт.

4

87255998

HOSE,6.35mm ID x 1670mm L, SAE 100R17

1шт.

5

400238

JOINT

4шт.

6

87423020

HOSE,6.35mm ID x 610mm L, SAE 100R17

2шт.

7

87423019

HOSE,6.35mm ID x 650mm L, SAE 100R17

1шт.

8

87238307

HOSE,6.35mm ID x 570mm L, SAE 100R17

1шт.

9

87423825

TUBE,9.5 mm DIA x 1150 mm L

2шт.

10

87423017

HOSE,6.35mm ID x 2000mm L, SAE 100R17

1шт.

10

87461155

HOSE ASSY.

DIV. 45°

1шт.

11

87423018

HOSE,6.35mm ID x 2100mm L, SAE 100R17

1шт.

11

87461156

HOSE ASSY.

DIV. 45°

1шт.

12

87423827

TUBE,9.5 mm DIA x 1100 mm L

2шт.

13

87423015

HOSE,6.35mm ID x 1800mm L, SAE 100R17

1шт.

14

87423016

HOSE,6.35mm ID x 1950mm L, SAE 100R17

1шт.

15

86988883

HOSE,6.35mm ID x 2300mm L, SAE 100R17

2шт.

16

402475

2шт.

17

400224

JOINT

2шт.

18

444074A1

HYD CONNECTOR

1шт.

19

402879

ELBOW

2шт.

20

86310227

HOSE ASSY.

2шт.

21

400223

ADAPTER

1шт.

22

400106

FILTER

2шт.
