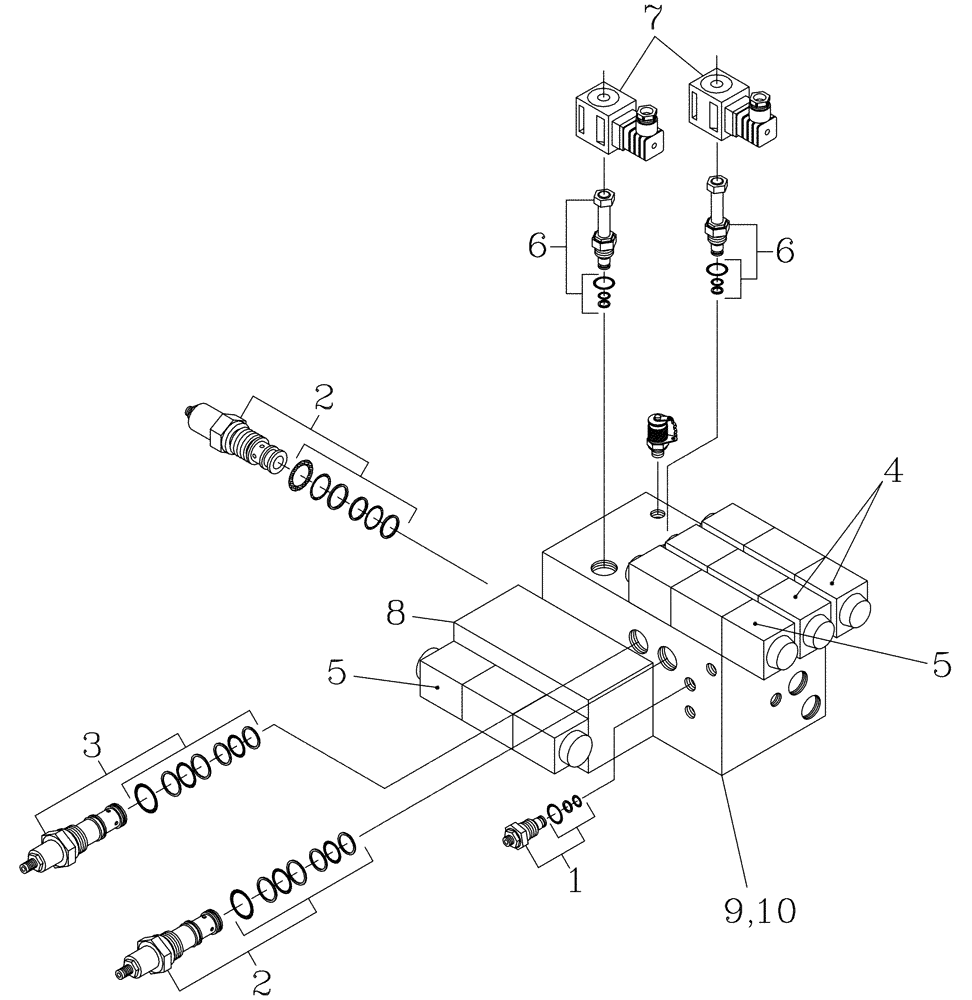

Запчасти Case IH 7700 (B05[13]) - HYDRAULIC VALVE {Elevator} Hydraulic Components & Circuits

1

395125A1

VALVE

CHECK

1шт.

1

00410163

SEAL KIT

1шт.

2

394617A1

VALVE PRESSURE RELIE

2шт.

2

00410175

SEAL KIT

2шт.

3

393666A1

HYDRAULIC VALVE

Pressure Sequence

1шт.

3

87407266

SEAL KIT

SEAL KIT

1шт.

4

00410121

HYDRAULIC VALVE

CETOP DIRECTIONAL

2шт.

4

393671A1

ORIFICE

ORIFICE [1mm]

2шт.

4

00409922

COIL

2шт.

4

00409929

SEAL KIT

2шт.

5

00410212

HYDRAULIC VALVE

CETOP DIRECTIONAL

2шт.

5

393670A1

ORIFICE

ORIFICE [2mm]

2шт.

5

00409922

COIL

2шт.

5

00409929

SEAL KIT

2шт.

6

393667A1

SOLENOID

Valve

2шт.

6

87407437

SEAL KIT

SEAL KIT

2шт.

7

00409848

SOLENOID

Coil

2шт.

8

393665A1

HYDRAULIC VALVE

CETOP, Directional Control

1шт.

8

87406674

SEAL KIT

1шт.

9

87402686

VALVE

BODY

1шт.

10

385712A1

VALVE

Assembly

1шт.
