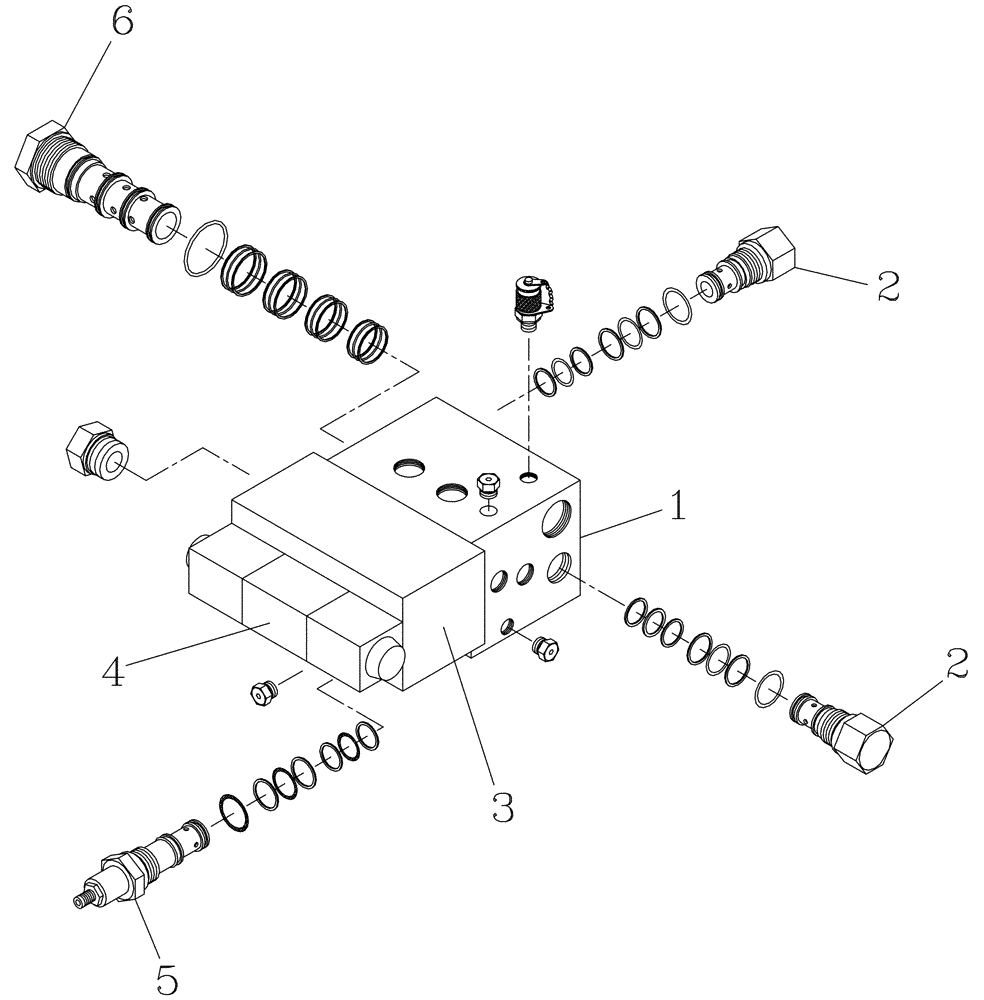

Запчасти Case IH 7700 (B05[01]) - HYDRAULIC SOLENOID VALVE {Topper} Hydraulic Components & Circuits

1

411960A1

VALVE

Assembly, Includes Items 2, 3, 4 & 5

1шт.

2

393660A1

HYDRAULIC VALVE

Cartridge

2шт.

2

00410175

SEAL KIT

2шт.

3

393659A1

HYDRAULIC VALVE

CETOP

1шт.

3

87407449

SEAL KIT

SEAL KIT

1шт.

4

393663A1

HYDRAULIC VALVE

CETOP

1шт.

4

00409929

SEAL KIT

1шт.

5

00409851

VALVE PRESSURE RELIE

1шт.

5

87407266

SEAL KIT

SEAL KIT

1шт.

6

412137A1

HYDRAULIC VALVE

Flow Divider Cartridge

1шт.

00400258

HYD CONNECTOR

PLUG TO REPLACE FLOWDIVIDERE IN STANDARD TOPPERS

1шт.

6

87407450

SEAL KIT

SEAL KIT

1шт.
