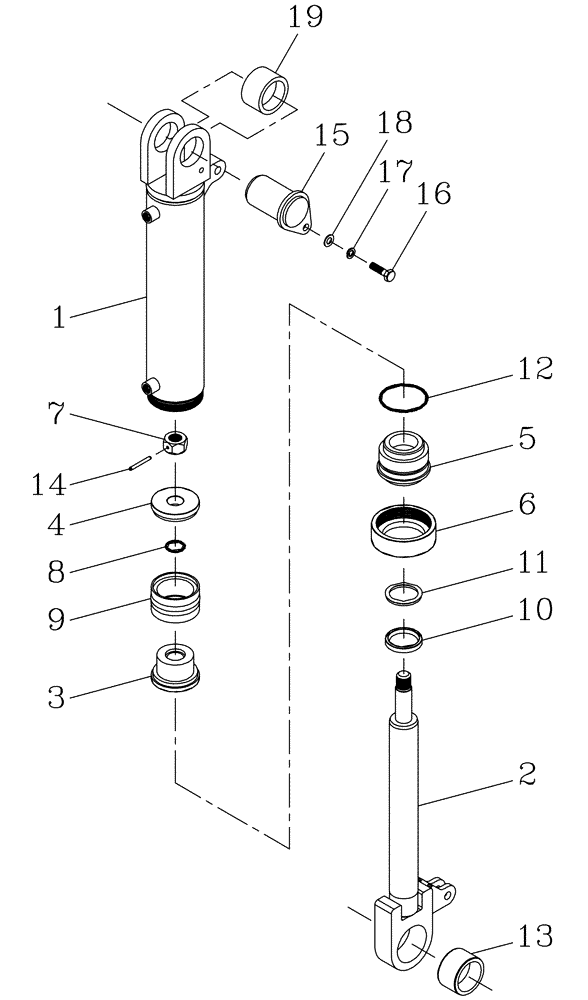

Запчасти Case IH 7700 (B02[10]) - HYDRAULIC CYLINDER {Basecutter Lift 7700} Hydraulic Components & Circuits

1

450585A1

BARREL

BARREL

1шт.

2

450608A1

SHAFT,44.45mm OD x 417mm L

CLEVIS

1шт.

3

86787200

CYLINDER,74.73mm Bore, 25.46mm Rod, 45.1mm W

1шт.

4

86787100

PISTON

1шт.

5

87214804

CYLINDER HEAD

1шт.

6

87045700

SPECIAL NUT

1шт.

7

25-1114

NUT,7/8"-14, G5

1шт.

8

00606612

NUT

1шт.

9

00100019

O-RING

1шт.

10

00100722

WIPER SEAL

1шт.

11

00100711

WIPER SEAL

1шт.

12

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

13

00100110

O-RING

1шт.

14

00608214

PIN

1шт.

15

450670A1

PIN,50.4mm OD x 90mm L

1шт.

16

FA110020

BOLT

1шт.

17

WB100000

WASHER

1шт.

18

WA100000

WASHER

1шт.

19

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

1шт.

20

450581A1

CYLINDER

Assy. [Excludes Items 15-18]

1шт.
