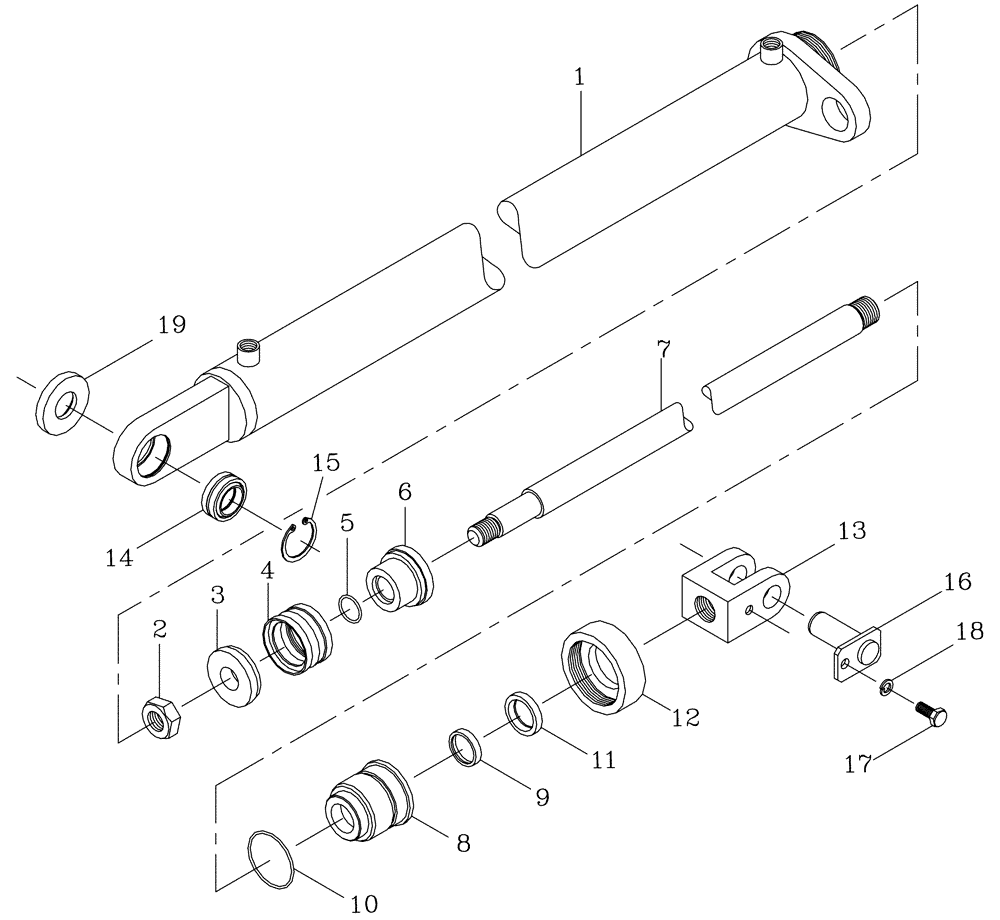

Запчасти Case IH 7700 (B02[07]) - HYDRAULIC CYLINDER {Elevator Lift} Hydraulic Components & Circuits

1

87220021

CYLINDER,63.5mm Bore Dia

BARREL, L.H.

1шт.

1

87220022

CYLINDER,63.5mm Bore Dia

BARREL, R.H.

1шт.

2

00606612

NUT

1шт.

3

86787900

PISTON

RETAINER

1шт.

4

00100716

OIL SEAL

1шт.

5

00100019

O-RING

1шт.

6

86787800

PISTON

1шт.

7

87236364

SHAFT

ROD

1шт.

8

87214803

CYLINDER HEAD

1шт.

9

00100758

OIL SEAL

1шт.

10

00100106

O-RING

1шт.

11

00100675

SEAL

WIPER

1шт.

12

86930200

NUT

1шт.

13

87244758

CYLINDER

CLEVIS

1шт.

14

00141400

BEARING

1шт.

15

CI047000

CIRCLIP

1шт.

16

87237362

PIN,25mm OD x 75mm L

1шт.

17

00601495

BOLT

1шт.

18

00605827

WASHER

1шт.

19

87231581

SPACER

1шт.

20

87214805

SEAL KIT

1шт.

21

87244776

CYLINDER,Double Acting, 31.75mm Rod, 914mm Stroke

ASSEMBLY, L.H., Excludes: items 16-19

1шт.

21

87244777

CYLINDER,Double Acting, 31.75mm Rod, 914mm Stroke

ASSEMBLY, R.H., Excludes: items 16-19

1шт.
