Запчасти Case IH 7700 (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments

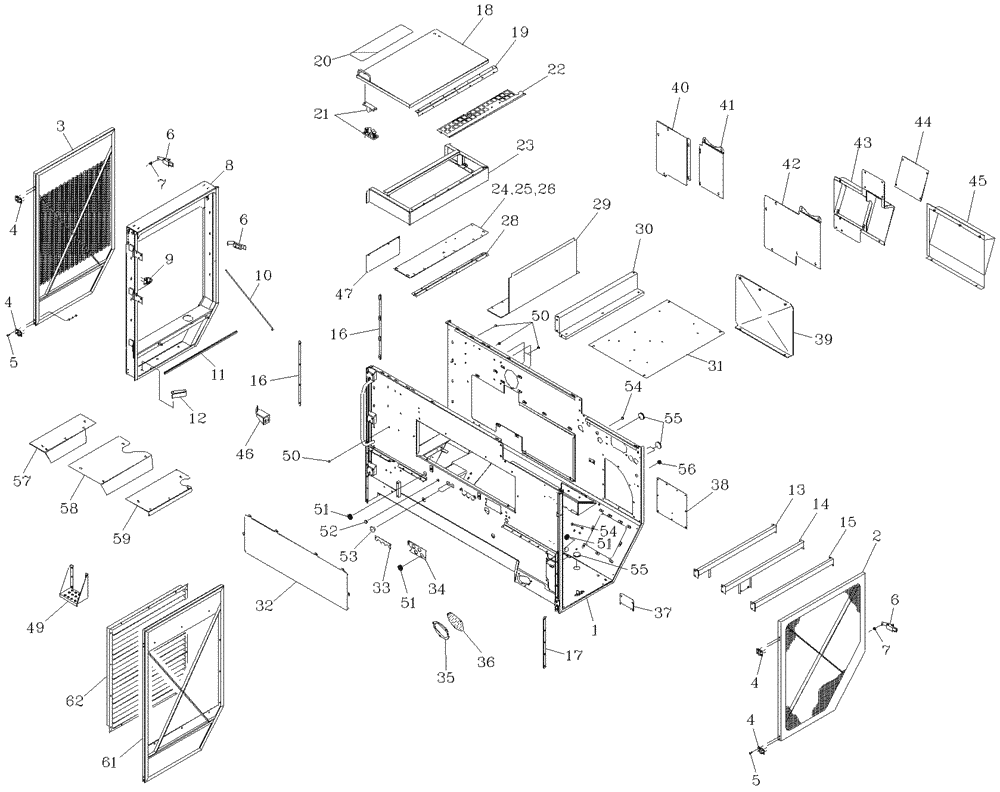

Схема запчастей Case IH 7700 - (C03[01]) - ENGINE COMPARTMENT Engine & Engine Attachments
51
41
18
39
55
8
49
50
45
25
10
3
19
14
43
46
62
6
28
55
21
31
53
35
34
7
52
5
5
44
4
4
30
16
33
2
6
51
16
58
20
12
11
7
22
50
23
40
9
54
17
13
4
37
56
24
26
47
1
36
42
54
59
6
4
15
61
51
29
32
38
57

Артикул

Название

Примечание

Количество

1

441846A1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE COMPARTMENT [125]

1шт.

1

400055A1

FRAME

ENGINE COMPARTMENT [6CT]

1шт.

1

431080A1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE COMPARTMENT [M11/QSM11]

1шт.

2

433218A1

DOOR ASSY.

Pump Side

1шт.

2

00180492

SEAL

Pinchweld / Rubber

1шт.

3

430445A1

DOOR ASSY.

Radiator Side

1шт.

3

00180492

SEAL

Pinchweld / Rubber

1шт.

4

377362A1

HINGE

4шт.

5

FD106025

SCREW,Csk, M6 x 25mm

16шт.

5

NA106000

NUT

16шт.

6

00181880

LATCH

5шт.

7

00181881

BUTTON

2шт.

8

430417A1

DOOR

Radiator Mount

1шт.

87427928

HINGE

SWINGOUT RADIATOR DOOR

2шт.

9

436043A1

CLAMP BRACKET

1шт.

10

436042A1

BAR

Brace

1шт.

11

00180492

SEAL

Pinchweld / Rubber

1шт.

12

434190A1

MOUNTING PARTS

1шт.

13

380350A1

BRACE

CROSS MEMBER [125]

1шт.

14

87249841

SUPPORT

CROSS MEMBER [M11/QSM11]

1шт.

15

87232171

STIFFENER

CROSS MEMBER [6CT]

1шт.

16

435321A1

COVER ASSY

2шт.

17

443014A1

COVER

COVER

1шт.

18

431071A1

ACCESS COVER

1шт.

19

86958200

HINGE

1шт.

20

00154740

ADHESIVE STRIP

ANTI-SKID

2шт.

21

00607939

SPRING

CATCH

2шт.

22

431073A1

COVER PLATE

1шт.

23

433219A1

MOUNTING PARTS

COVER

1шт.

24

441838A1

PLATE

[125]

1шт.

25

380340A1

PLATE

PLATE [6CT]

1шт.

26

435765A1

HINGE

PLATE [M11/QSM11]

1шт.

28

87242089

HINGE

1шт.

29

87242090

PLATE

Cover

1шт.

30

87242289

BRACKET

Member

1шт.

31

369268A1

TOOL KIT

COVER

1шт.

32

367702A1

PLATE

1шт.

33

87243296

PLATE

PLATE

1шт.

34

381444A1

COVER

COVER

1шт.

35

417806A1

COVER ASSY

COVER

1шт.

36

87247978

SEAL

SEAL

1шт.

37

443945A1

COVER

COVER

1шт.

38

87254374

COVER

INSPECTION COVER

1шт.

39

87231867

COVER ASSY

1шт.

40

395721A1

COVER

[6CT]

1шт.

41

389996A1

COVER

COVER [6CT]

1шт.

42

376680A1

COVER

COVER [125]

1шт.

43

376677A1

MOUNTING PARTS

COVER [M11/QSM11]

1шт.

44

376679A1

COVER PLATE

COVER [M11/QSM11]

1шт.

45

87231847

COVER ASSY

COVER [M11/QSM11]

1шт.

46

87414500

STOP

DOOR STOP

1шт.

47

440901A1

PLATE

FAN GUARD [M11/QSM11]

1шт.

49

398480A1

STEP

STEP

1шт.

50

00180666

GROMMET

GROMMET

6шт.

51

00137164

GROMMET

7шт.

52

00134275

GROMMET

GROMMET

1шт.

53

00135280

GROMMET

GROMMET

2шт.

54

00180794

GROMMET

GROMMET

2шт.

55

00180793

GROMMET

4шт.

56

00153805

GROMMET

3шт.

57

441839A1

PLATE

Lower Cover [125]

1шт.

58

436560A1

COVER

LOWER COVER [6CT]

1шт.

59

430982A1

COVER ASSY

Lower Cover [M11]

1шт.

61

86984572

DOOR

DOOR [EEC]

1шт.

62

86984562

DOOR ASSY.

LOUVER [EEC]

1шт.

63

86984571

DOOR ASSY.

DOOR ASSEMBLY [Radiator Side][EEC]

1шт.

Выбрано товаров: 66
