Запчасти Case IH 7700 (C02[05]) - COOLING FAN, DRIVE BELT and SHROUD {M11/QSM11} Engine & Engine Attachments

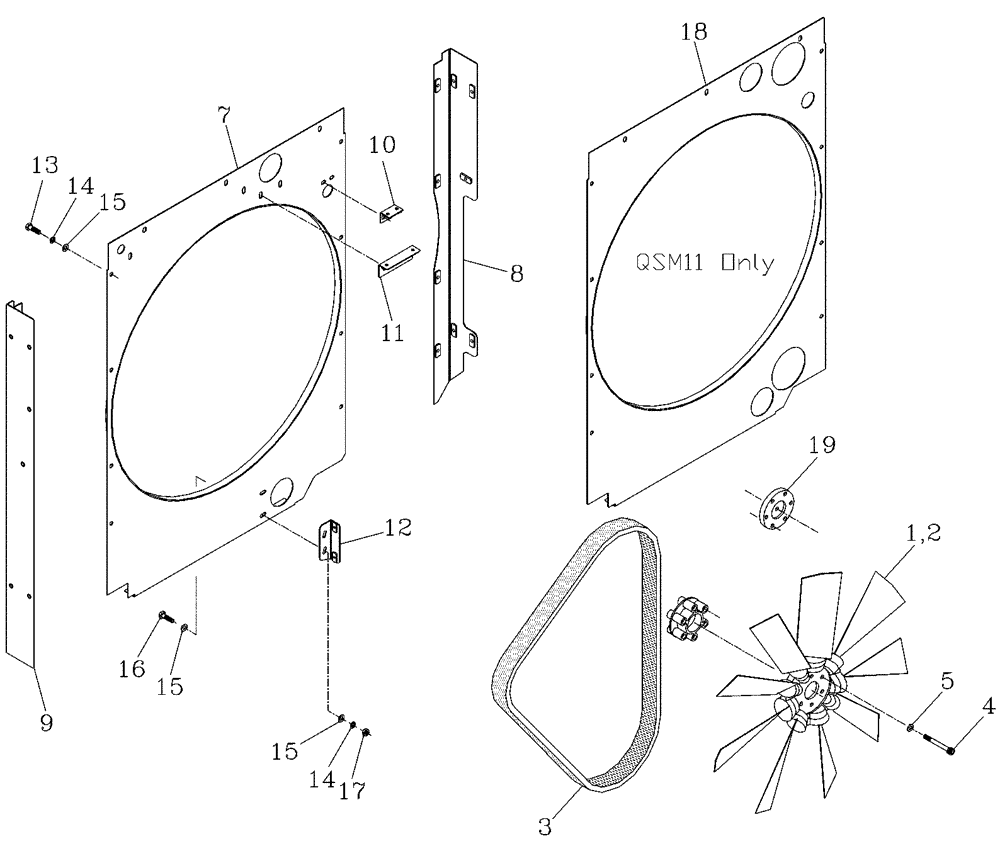

Схема запчастей Case IH 7700 - (C02[05]) - COOLING FAN, DRIVE BELT and SHROUD {M11/QSM11} Engine & Engine Attachments
14
15
15
5
16
1
14
10
12
19
15
2
13
18
3
4
17
11
7
8
9

Артикул

Название

Примечание

Количество

1

87232782

FAN

Assembly

1шт.

2

00180477

PACKAGE

Blade

12шт.

3

00181971

BELT

[M11 ONLY]

1шт.

3

448495A1

BELT

[QSM11 Only]

1шт.

4

00608234

SCREW

SCREW

6шт.

5

00605827

WASHER

6шт.

7

435051A1

SHROUD

SHROUD [M11 ONLY]

1шт.

8

398492A1

SUPPORT

SUPPORT [Rear]

1шт.

9

398490A1

SUPPORT

SUPPORT [Front]

1шт.

10

435053A1

MOUNTING PARTS

[Shunt Line]

1шт.

11

434188A1

MOUNTING PARTS

[Top Tube]

1шт.

12

434189A1

MOUNTING PARTS

[Bottom Tube]

1шт.

13

FA110016

BOLT

19шт.

14

WB100000

WASHER

25шт.

15

WA100000

WASHER

31шт.

16

FA110025

BOLT

6шт.

17

NA110000

NUT

6шт.

18

398488A1

SHROUD

SHROUD [QSM11 ONLY]

1шт.

19

87231787

FAN

SPACER [QSM11 ONLY]

2шт.

Выбрано товаров: 19
